ADP2165 Series

5.5 V, 5 A, High Efficiency, Step-Down DC-to-DC Regulators with Output Tracking

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

5.5 V, 5 A, High Efficiency, Step-Down DC-to-DC Regulators with Output Tracking

Part	Topology	Output Configuration	Package / Case	Mounting Type	Synchronous Rectifier	Number of Outputs	Current - Output	Package Width	Package Name	Package Length	Output Type	Function	Operating Temperature (Max)	Operating Temperature (Min)	Frequency - Switching (Min)	Frequency - Switching (Max)	Voltage - Output (Min/Fixed)	Voltage - Input (Min)	Voltage - Input (Max)	Voltage - Output (Max)	Total Output Count	Non-Isolated Output Count	Board Type	Supplied Contents	Contents	Main Purpose	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Regulator Topology	Utilized IC / Part
Analog Devices Inc./Maxim Integrated ADP2165ACPZ-1.2-R7	Buck	Positive	24-WFQFN Exposed Pad CSP	Surface Mount	Yes	1	5 A	4 mm	24-LFCSP	4 mm	Fixed	Step-Down	125 °C	-40 °C	250 kHz	1.4 MHz	1.2 V	2.7 V	5.5 V
Analog Devices Inc./Maxim Integrated ADP2165ACPZ-1.5-R7	Buck	Positive	24-WFQFN Exposed Pad CSP	Surface Mount	Yes	1	5 A	4 mm	24-LFCSP	4 mm	Fixed	Step-Down	125 °C	-40 °C	250 kHz	1.4 MHz	1.5 V	2.7 V	5.5 V
Analog Devices Inc./Maxim Integrated ADP2165ACPZ-1.8-R7	Buck	Positive	24-WFQFN Exposed Pad CSP	Surface Mount	Yes	1	5 A	4 mm	24-LFCSP	4 mm	Fixed	Step-Down	125 °C	-40 °C	250 kHz	1.4 MHz	1.8 V	2.7 V	5.5 V
Analog Devices Inc./Maxim Integrated ADP2165ACPZ-3.3-R7	Buck	Positive	24-WFQFN Exposed Pad CSP	Surface Mount	Yes	1	5 A	4 mm	24-LFCSP	4 mm	Fixed	Step-Down	125 °C	-40 °C	250 kHz	1.4 MHz	3.3 V	2.7 V	5.5 V
Analog Devices Inc./Maxim Integrated ADP2165ACPZ-1.0-R7	Buck	Positive	24-WFQFN Exposed Pad CSP	Surface Mount	Yes	1	5 A	4 mm	24-LFCSP	4 mm	Fixed	Step-Down	125 °C	-40 °C	250 kHz	1.4 MHz	1 V	2.7 V	5.5 V
Analog Devices Inc./Maxim Integrated ADP2165ACPZ-R7	Buck	Positive	24-WFQFN Exposed Pad CSP	Surface Mount	Yes	1	5 A	4 mm	24-LFCSP	4 mm	Adjustable	Step-Down	125 °C	-40 °C	250 kHz	1.4 MHz	0.6 V	2.7 V	5.5 V	4.95 V

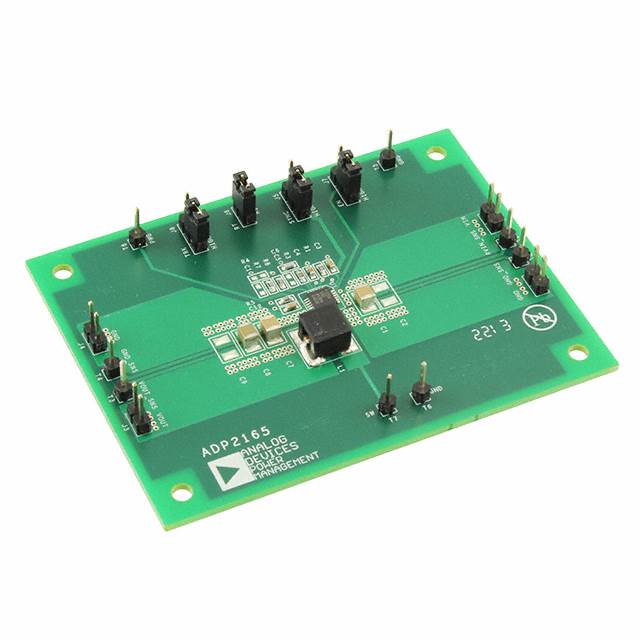

Analog Devices Inc./Maxim Integrated ADP2165-EVALZ							5 A				Non-Isolated										1	1 count	Fully Populated	Board(s)	Board	DC/DC Step Down	2.7 V	5.5 V	Buck	ADP2165
Analog Devices Inc./Maxim Integrated ADP2165ACPZ-2.5-R7	Buck	Positive	24-WFQFN Exposed Pad CSP	Surface Mount	Yes	1	5 A	4 mm	24-LFCSP	4 mm	Fixed	Step-Down	125 °C	-40 °C	250 kHz	1.4 MHz	2.5 V	2.7 V	5.5 V

Description

The ADP2165/ADP2166are high efficiency, current mode control, step-down dc-to-dc regulators with an integrated 19 mΩ high-side FET and a 15 mΩ synchronous rectified FET. The ADP2165/ADP2166 combine a small size, 4 mm × 4 mm LFCSP package with an accurate current limit, resulting in a smaller inductor size and a high power density, point of load solution.Key features include precision enable, power-good monitor, and output voltage tracking to facilitate robust sequencing. The switching frequency can be programmed from 250 kHz to 1.4 MHz, or it can be fixed at 620 kHz or 1.2 MHz. The synchronization function allows the switching frequency to synchronize to an external clock, minimizing the electromagnetic interference (EMI) of the system.The ADP2165/ADP2166 are designed to be extremely flexible with the addition of a minimal amount of external components to program soft start and control loop compensation.he ADP2165/ADP2166 are supplied from an input voltage of 2.7 V to 5.5 V. Output voltage options include 3.3 V, 2.5 V, 1.8 V, 1.5 V, 1.2 V, or 1.0 V fixed outputs and adjustable options capable of supporting an output voltage range from 0.6 V to 90% of the input voltage. Protection features include undervoltage lockout (UVLO), overvoltage protection (OVP), overcurrent protection (OCP), and thermal shutdown (TSD) for robust performance.The ADP2165/ADP2166 operate over the −40°C to +125°C junction temperature range and are available in a 24-lead LFCSP package.ApplicationsPoint of load regulationCommunications and networkingHigh end consumerIndustrial, instrumentation, and healthcare
