3402-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

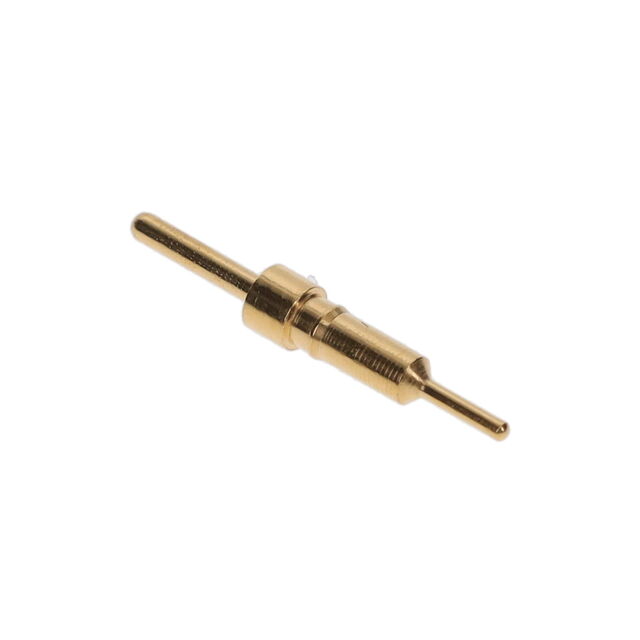

CONN PC PIN CIRC .030DIA GOLD
| Part | Contact Material | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall | Length - Overall | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Contact Finish | Termination | Insulation | Mounting Type | Terminal Style | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Brass Alloy | 0.169 in | 4.29 mm | 1.45 mm | 0.057 in | 12.19 mm | 0.48 in | 0.072 " | 1.83 mm | 0.25 Ám | 10 Áin | PC Pin | Gold | Press-Fit | Non-Insulated | Through Hole | Double End | 0.03 in | 0.76 mm | 6.58 mm | 0.259 " | 0.02 in | 0.51 mm |
 Mill-Max Manufacturing Corp. | Brass Alloy | 0.169 in | 4.29 mm | 1.45 mm | 0.057 in | 12.19 mm | 0.48 in | 0.072 " | 1.83 mm | 5.08 Ám | 200 Áin | PC Pin | Tin-Lead | Press-Fit | Non-Insulated | Through Hole | Double End | 0.03 in | 0.76 mm | 6.58 mm | 0.259 " | 0.02 in | 0.51 mm |
