KDS Series
Manufacturer: Phoenix Contact
Catalog

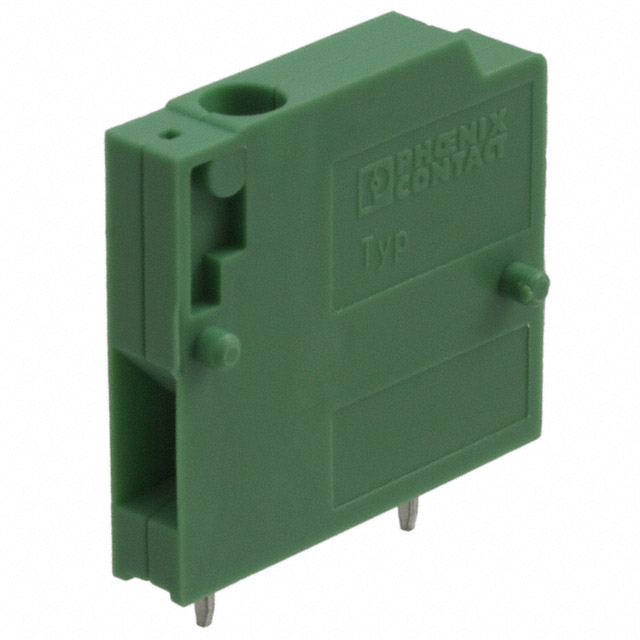

TERM BLOCK 1POS SIDE ENTRY PCB
| Part | Housing Material | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Torque - Screw [Max] | Screw Thread | Color | Number of Levels | Mounting Type | Current | Features | Wire Termination | Wire Gauge [Min] | Wire Gauge [Max] | Positions Per Level | Mating Orientation | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | Polyamide (PA) Nylon | 0.6 Nm | 4.4 Lb-In | 0.5 Nm | 5.3 Lb-In | M3 | Green | 1 | Through Hole | 15 A | Interlocking (Side) | Screw - Rising Cage Clamp | 12 AWG | 28 AWG | 1 | Horizontal with Board | 300 VDC |
