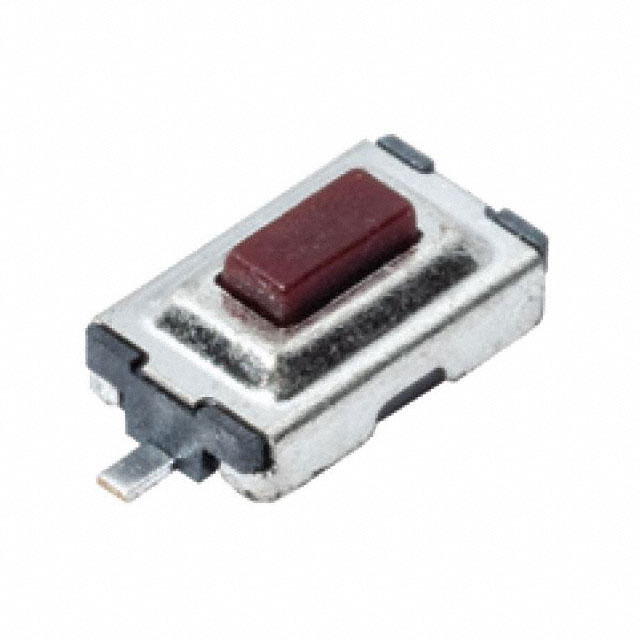

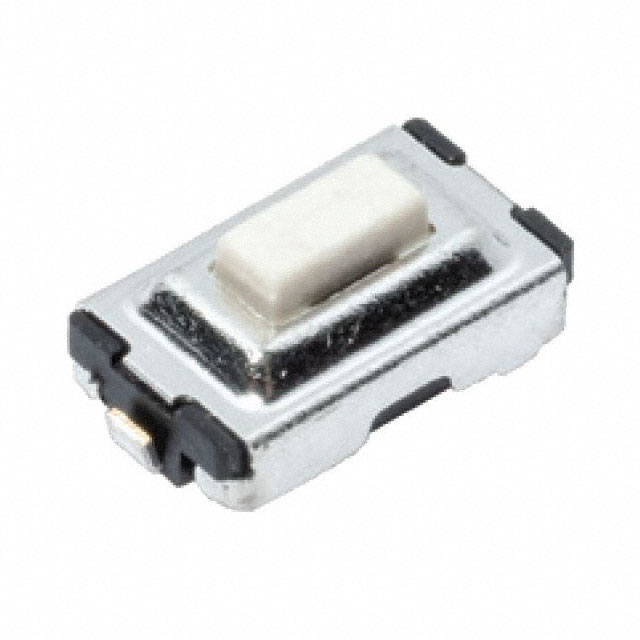

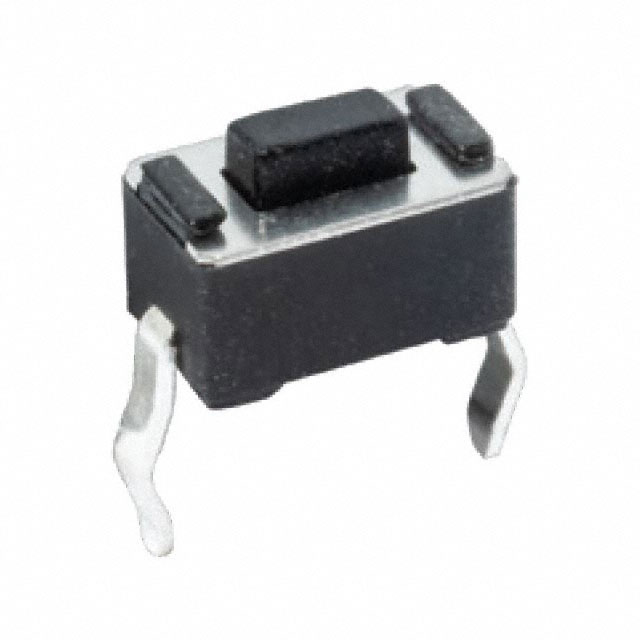

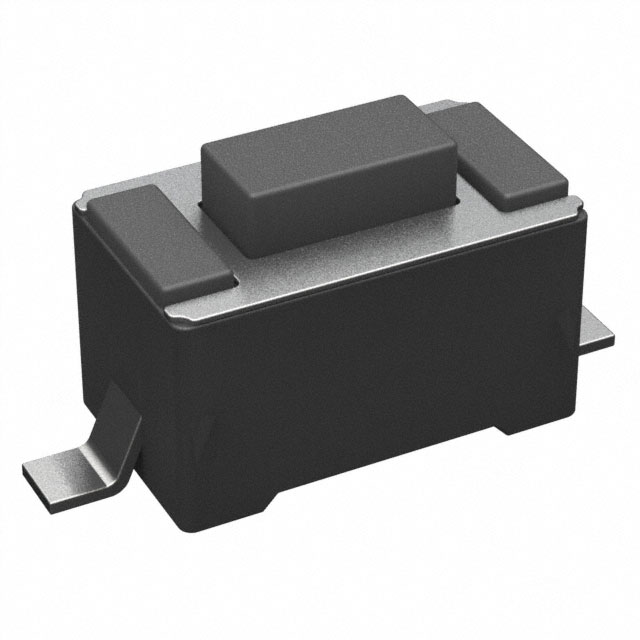

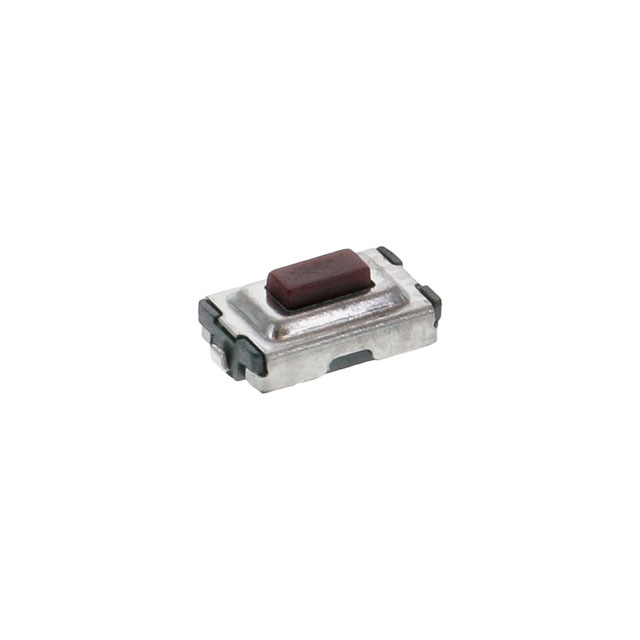

Pts6360 Series Series

Tactile Switches 6.0 x 3.5 Tact Switch for THT and SMT 6.0 x 3.5 Tact Switch for THT and SMT

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Tactile Switches 6.0 x 3.5 Tact Switch for THT and SMT 6.0 x 3.5 Tact Switch for THT and SMT

Part	Contact Rating @ Voltage	Switch Travel [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Actuator Type	Mounting Type	Ingress Protection	Switch Function	Operating Force	Outline [y]	Outline [x]	Termination Style	Actuator Height off PCB, Vertical [z]	Circuit	Illumination	Mechanical Life	Switch Travel	Actuator Height off PCB, Vertical
Littelfuse/Commercial Vehicle Products PTS636 SM43 SMTR LFS	0.05 A 12 VDC	0.3 mm	90 °C	-40 °C	Top Actuated	Rectangular Button	Surface Mount	IP40	Off-Mom	180 gf	3.5 mm	6 mm	Gull Wing	4.3 mm	SPST-NO	Non-Illuminated
Littelfuse/Commercial Vehicle Products PTS636 SM25F SMTR LFS	0.05 A 12 VDC		90 °C	-40 °C	Top Actuated	Rectangular Button	Surface Mount	IP40	Off-Mom	180 gf	3.5 mm	6 mm	SMD (SMT) Tab	2.5 mm	SPST-NO	Non-Illuminated	70000 Cycles	0.25 mm
Littelfuse/Commercial Vehicle Products PTS636 SM43J SMTR LFS	0.05 A 12 VDC		90 °C	-40 °C	Top Actuated	Rectangular Button	Surface Mount	IP40	Off-Mom	180 gf	3.5 mm	6 mm	J Lead	4.3 mm	SPST-NO	Non-Illuminated		0.25 mm
Littelfuse/Commercial Vehicle Products PTS636 SL50 SMTR LFS	0.05 A 12 VDC		90 °C	-40 °C	Top Actuated	Rectangular Button	Surface Mount	IP40	Off-Mom	130 gf	3.5 mm	6 mm	Gull Wing		SPST-NO	Non-Illuminated		0.25 mm	5 mm
Littelfuse/Commercial Vehicle Products PTS636 SL50 LFS	0.05 A 12 VDC		90 °C	-40 °C	Top Actuated	Rectangular Button	Through Hole	IP40	Off-Mom	130 gf	3.5 mm	6 mm	PC Pin		SPST-NO	Non-Illuminated		0.25 mm	5 mm
Littelfuse/Commercial Vehicle Products PTS636 SP50 SMTR LFS	0.05 A 12 VDC	0.3 mm	90 °C	-40 °C	Top Actuated	Rectangular Button	Surface Mount	IP40	Off-Mom	320 gf	3.5 mm	6 mm	Gull Wing		SPST-NO	Non-Illuminated	20000 Cycles		5 mm
Littelfuse/Commercial Vehicle Products PTS636 SM43 LFS	0.05 A 12 VDC	0.3 mm	90 °C	-40 °C	Top Actuated	Rectangular Button	Through Hole	IP40	Off-Mom	180 gf	3.5 mm	6 mm	PC Pin	4.3 mm	SPST-NO	Non-Illuminated
Littelfuse/Commercial Vehicle Products PTS636 SK25F SMTR LFS	0.05 A 12 VDC		90 °C	-40 °C	Top Actuated	Rectangular Button	Surface Mount	IP40	Off-Mom	0.25 kgf	3.5 mm	6 mm	SMD (SMT) Tab	2.5 mm	SPST-NO	Non-Illuminated	100000 Cycles	0.25 mm
Littelfuse/Commercial Vehicle Products PTS636 SM25J SMTR LFS	0.05 A 12 VDC		90 °C	-40 °C	Top Actuated	Rectangular Button	Surface Mount	IP40	Off-Mom	180 gf	3.5 mm	6 mm	J Lead	2.5 mm	SPST-NO	Non-Illuminated	70000 Cycles	0.25 mm
Littelfuse/Commercial Vehicle Products PTS636 SK50 SMTR LFS	0.05 A 12 VDC	0.3 mm	90 °C	-40 °C	Top Actuated	Rectangular Button	Surface Mount	IP40	Off-Mom	0.25 kgf	3.5 mm	6 mm	Gull Wing		SPST-NO	Non-Illuminated	30000 Steps		5 mm

Catalog

Tactile Switches 6.0 x 3.5 Tact Switch for THT and SMT 6.0 x 3.5 Tact Switch for THT and SMT

Key Features

• IP40

• 6.0 x 3.5 form factor

• Actuator height 2.5; 4.3; 5.0 mm

Description

The PTS636 series is a small 6.0 x 3.5 form factor in SMT version with 3 different heights and 4 available actuation forces, ideal for general usage applications. It also included ground pin options on 2.5 mm height version.
