P-Channel Power Mosfet Series

Manufacturer: INFINEON

Catalog

POWER MOSFET, HEXFET®, P CHANNEL, 20 V, 2.6 A, 0.09 OHM, SOT-23, SURFACE MOUNT

Part	Supplier Device Package	Technology	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Vgs (Max)	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds	FET Type	Package / Case	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On)

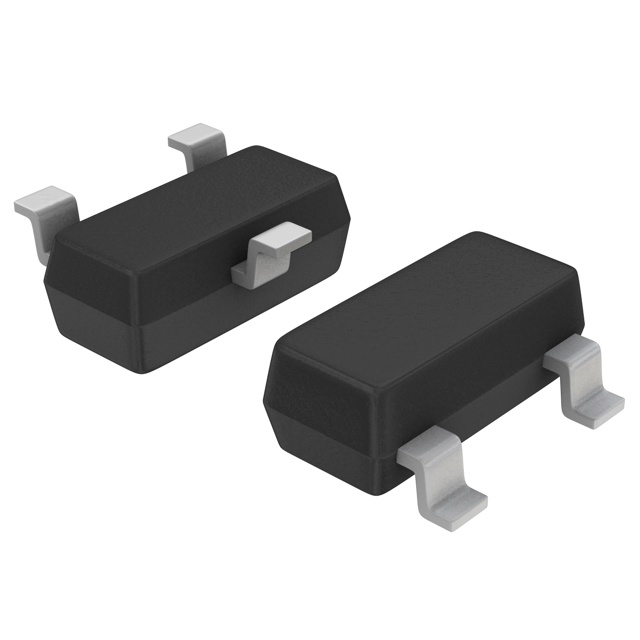

INFINEON IRLML2246TRPBF	Micro3™/SOT-23	MOSFET (Metal Oxide)	1.1 V	2.6 A	2.5 V	4.5 V	12 V	1.3 W	135 mOhm	Surface Mount	150 °C	-55 °C	2.9 nC	220 pF	P-Channel	SC-59 SOT-23-3 TO-236-3	20 V
INFINEON IRFTS9342TRPBF	6-TSOP	MOSFET (Metal Oxide)	2.4 V	5.8 A			20 V	2 W		Surface Mount	150 °C	-55 °C			P-Channel	SOT-23-6	30 V	40 mOhm	595 pF	12 nC	4.5 V 10 V
