AD4030-24 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
ANALOG TO DIGITAL CONVERTERS - ADC 24-BIT, 2 MSPS, SINGLE
| Part | Number of Bits | Sampling Rate (Per Second) | Package / Case | Ratio - ADC | Ratio - S/H | Package Name | Package Length | Package Width | Reference Type | Voltage - Supply, Digital (Range 1) Maximum | Voltage - Supply, Digital (Typical) | Voltage - Supply, Digital (Range 1) Minimum | Voltage - Supply, Digital (Range 2) Maximum | Voltage - Supply, Digital (Range 3) Minimum | Voltage - Supply, Digital (Range 3) Maximum | Voltage - Supply, Digital (Range 2) Minimum | Data Interface | Voltage - Supply, Analog (Additional) | Voltage - Supply, Analog (Range 2 Min) | Voltage - Supply, Analog (Range 2 Max) | Voltage - Supply, Analog (Range 3 Max) | Voltage - Supply, Analog (Range 1 Min) | Voltage - Supply, Analog (Range 3 Min) | Voltage - Supply, Analog (Range 1 Max) | Input Type | Number of Inputs | Number of A/D Converters | Operating Temperature (Max) | Operating Temperature (Min) | Configuration | Mounting Type | Architecture | Voltage - Supply, Analog (Range 4 Min) | Voltage - Supply, Analog (Range 4 Max) | Supplied Contents | Utilized IC / Part | Input Range | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 24 bits | 2 MHz | 64-FBGA CSPBGA | 1 | 0 | 64-CSPBGA | 7 mm | 7 mm | External Internal | 1.89 V | 4.8 V | 1.71 V | 5.25 V | 5.3 V | 5.5 V | 4.75 V | SPI | 4.8 V | 4.75 V | 5.25 V | 5.5 V | 1.71 V | 5.3 V | 1.89 V | Differential | 1 | 1 count | 125 °C | -40 °C | ADC | Surface Mount | SAR | ||||||
Analog Devices Inc./Maxim Integrated | 24 bits | 2 MHz | 64-FBGA CSPBGA | 1 | 0 | 64-CSPBGA | 7 mm | 7 mm | External Internal | 1.89 V | 1.71 V | 5.25 V | 4.8 V | 5.25 V | 4.75 V | SPI | 4.75 V | 5.25 V | 5.25 V | 1.71 V | 4.8 V | 1.89 V | Differential | 1 | 1 count | 125 °C | -40 °C | ADC | Surface Mount | SAR | 5.3 V | 5.5 V | ||||||

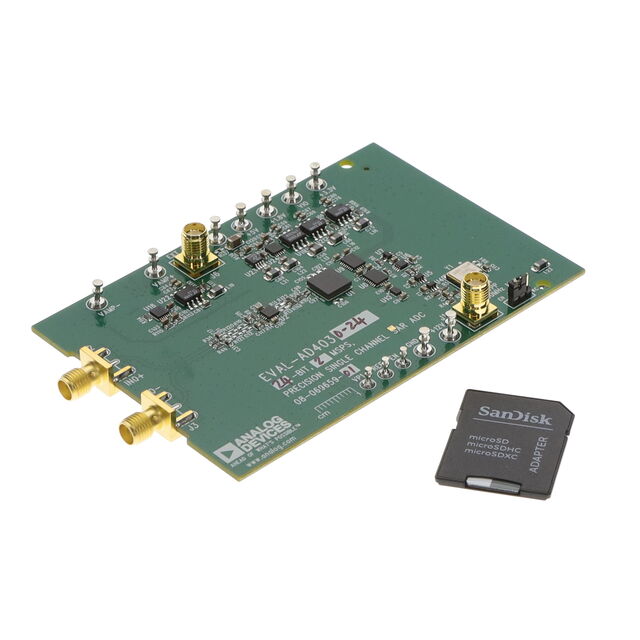

 Analog Devices Inc./Maxim Integrated | 24 bits | 2 MHz | Serial SPI | 1 count | Board(s) | AD4030-24 | ±VREF | Board |
