414J Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

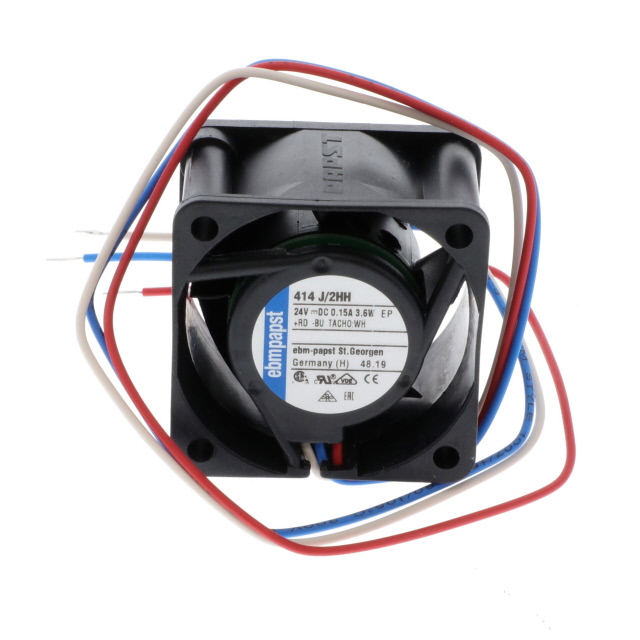

FAN AXIAL 40X25.4MM 24VDC WIRE
| Part | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Material - Frame | Termination | Size / Dimension [x] | Size / Dimension [z] | Weight [custom] | Weight [custom] | Width [y] | Fan Type | Noise | Features | RPM | Power (Watts) | Voltage - Rated | Bearing Type | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 57500 Hrs | 18 VDC | 27 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 3 Wire Leads | 40 mm | 40 mm | 0.111 lb | 50.35 g | 25.4 mm | Tubeaxial | 46 dB(A) | Locked Rotor Protection Speed Sensor (Tach) | 13000 RPM | 3.6 W | 24 VDC | Ball | 14.1 CFM | 0.395 m³/min | 60 °C | 60 °C | -4 °F | -20 ░C | |
 ebm-papst Inc. | 57500 Hrs | 18 VDC | 27 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 2 Wire Leads | 40 mm | 40 mm | 0.111 lb | 50.35 g | 25.4 mm | Tubeaxial | 43 dB | 11700 RPM | 3 W | 24 VDC | Ball | 12.9 CFM | 0.361 mł/min | 70 °C | -20 ░C | CSA UL VDE |
