EYG-T3535 Series

Catalog

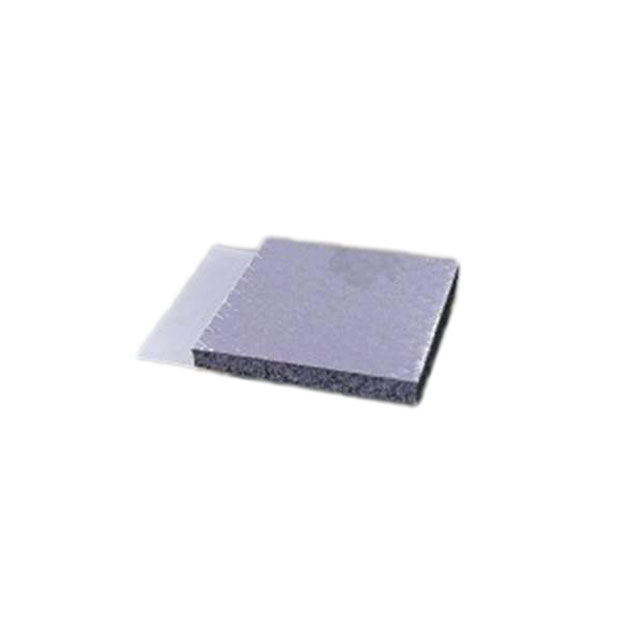

THERM PAD 35X35MM W/ADH BLACK

Part	Thermal Conductivity	Thickness	Thickness	Adhesive	Thermal Resistivity	Shelf Life	Shape	Type	Shelf Life Start	Usage	Material	Color	Outline [y]	Outline [x]
Panasonic Industrial Automation Sales EYG-T3535A20A	13 W/m-K	0.079 in	2 mm	Adhesive - Both Sides	1.93 °C/W	12 Months	Square	Graphite-Pad Sheet	Date of Manufacture	Through-Plane Heat Transfer	Graphite Resin	Black	35 mm	35 mm
Panasonic Industrial Automation Sales EYG-T3535A15A	13 W/m-K	0.0591 "	1.5 mm	Adhesive - Both Sides	1.56 °C/W	12 Months	Square	Graphite-Pad Sheet	Date of Manufacture	Through-Plane Heat Transfer	Graphite Resin	Black	35 mm	35 mm
Panasonic Industrial Automation Sales EYG-T3535A25A	13 W/m-K	0.0984 in	2.5 mm	Adhesive - Both Sides		12 Months	Square	Graphite-Pad Sheet	Date of Manufacture	Through-Plane Heat Transfer	Graphite Resin	Black	35 mm	35 mm
