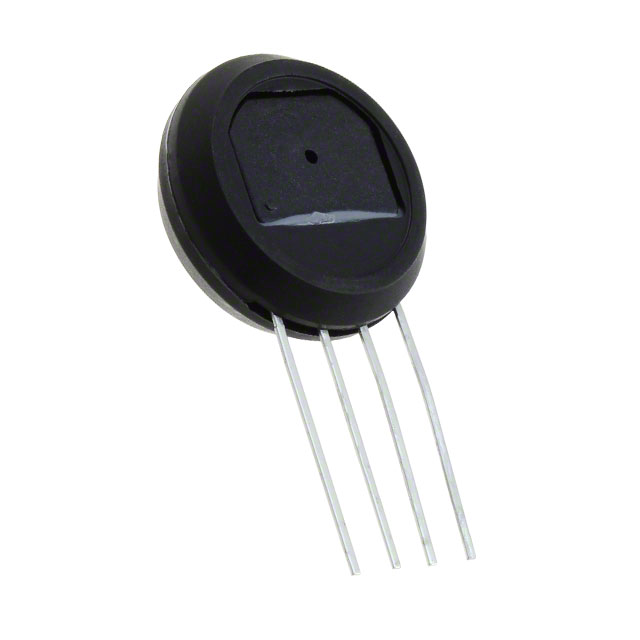

NSCSMNN Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SENSOR 100PSID .1725V 4SIP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Maximum Pressure | Maximum Pressure | Output Type | Operating Pressure | Operating Pressure | Termination Style | Output [Max] | Output [Min] | Pressure Type | Accuracy | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Applications | Port Style | Mounting Type | Supplier Device Package | Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 85 °C | -40 °C | 1723.69 kPa | 250 PSI | Wheatstone Bridge | 100 PSI | 689.48 kPa | PC Pin | 172.5 mV | 0 mV | Differential | 0.25 % | 12 V | 1.5 V | 4-SIP Module | Board Mount | No Port | Through Hole | 4-SIP | |
Honeywell Sensing and Productivity Solutions | 85 °C | -40 °C | 68.95 kPa | 10 PSI | Wheatstone Bridge | PC Pin | 65 mV | 0 mV | Differential | 0.25 % | 12 V | 1.5 V | 4-SIP Module | Board Mount | No Port | Through Hole | 4-SIP | 5V | ||
Honeywell Sensing and Productivity Solutions | 85 °C | -40 °C | 1723.69 kPa | 250 PSI | Wheatstone Bridge | 150 PSI | 1034.21 kPa | PC Pin | 258.5 mV | 0 mV | Differential | 0.25 % | 12 V | 1.5 V | 4-SIP Module | Board Mount | No Port | Through Hole | 4-SIP |
