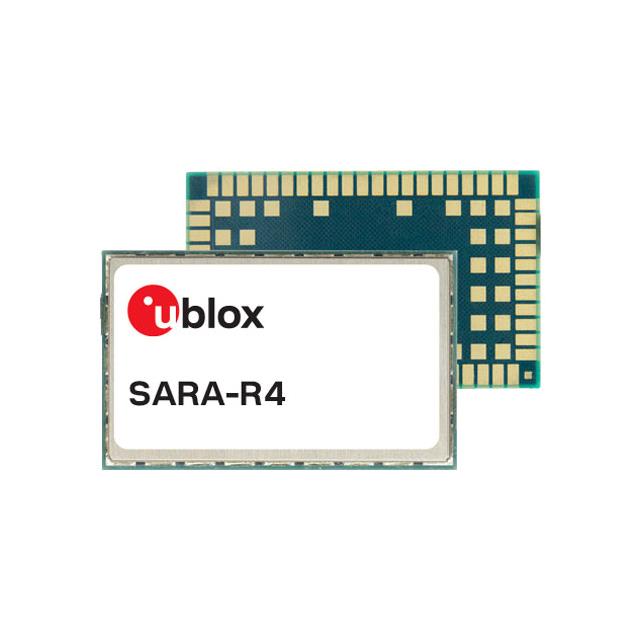

SARA-R410 Series

Manufacturer: u-blox

Catalog

RF TXRX MOD CELL NAV SMD

Part	Antenna Type	Protocol	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	RF Family/Standard	Current - Transmitting [Min]	Current - Transmitting [Max]	Mounting Type	Power - Output	Sensitivity	Package / Case	Modulation	Current - Receiving [Min]	Current - Receiving [Max]	Serial Interfaces	Voltage - Supply [Min]	Voltage - Supply [Max]
u-blox SARA-R410M-83B	Antenna Not Included	CDMA Galileo GLONASS GNSS GPRS GPS GSM HSPA LTE UMTS	1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 700 MHz 800 MHz 850 MHz 900 MHz	85 °C	-40 C	375 kbps	Cellular Navigation	100 mA	500 mA	Surface Mount	23 dBm	-167 dBm	96-SMD Module	QPSK	100 mA	190 mA	GPIO I2C UART USB	3.2 V	4.2 V
u-blox SARA-R410M-01B	Antenna Not Included Castellation	4G LTE CAT M1/NB-IoT	1.7 GHz 1.9 GHz 700 MHz 850 MHz	85 °C	-40 C		Cellular	100 mA	490 mA	Surface Mount		-107.5 dBm	96-SMD Module				I2C SPI UART USB	3.2 V	4.2 V
