TB1-1D Series
Manufacturer: Switch Components
Beta
⌘K

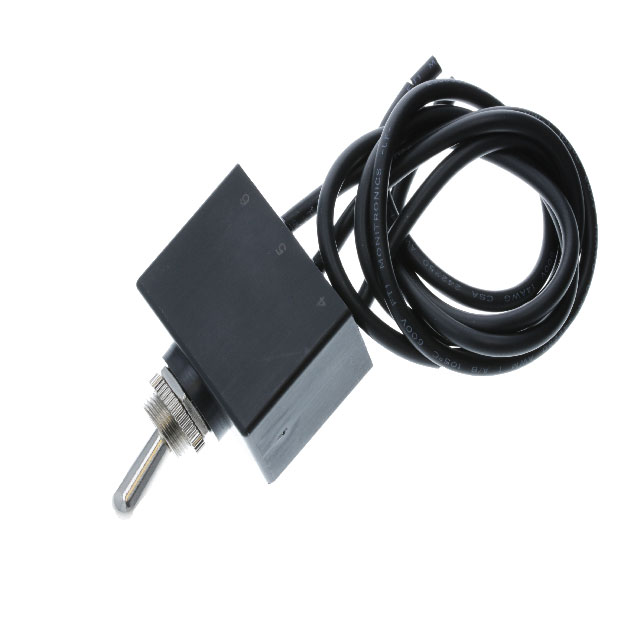

SWITCH TOGGLE SPDT 25A 12V
| Part | Actuator Material | Electrical Life (Cycles) | Current Rating | Mounting Type | Actuator Type | Bushing Thread | Actuator Length | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating - DC | Circuit | Panel Cutout Diameter | Panel Cutout Shape | Ingress Protection Description | Ingress Protection IP Rating | Switch Function | Termination Style | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | Brass Nickel Plated | 6000 Cycles | 25 A | Panel Mount | Standard Round | 15/32-32 | 15.3 mm | -40 °C | 85 °C | 12 V | SPDT | 12 mm | Circular | Dust Tight Waterproof | IP67 | On-On | Wire Leads | Non-Illuminated |
