RFD-1684 Series
Manufacturer: RF Industries
Beta
⌘K

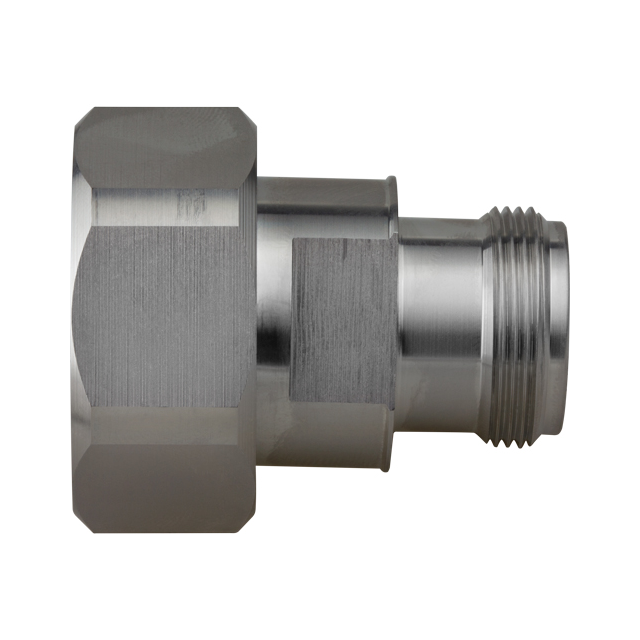

7/16 DIN MALE-4.1/9.5 FEMALE
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Mating Cycles | Center Contact Material | Body Material | Insertion Loss | Center Contact Plating | Convert To (Adapter End) | Impedance | Adapter Type | Style | Adapter Series | Conversion Type | Frequency - Max [Max] | Mounting Type | Convert From (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Polytetrafluoroethylene (PTFE) | -55 C | 85 °C | White Bronze | 500 | Phosphor Bronze | Brass | 0.05 dB | Silver | 7/16 Plug Male Pin | 50 Ohms | Plug to Jack | Straight | 7/16 DIN to 4.1/9.5 | Between Series | 7.5 GHz | Free Hanging (In-Line) | 4.1/9.5 Jack Female Socket |
