LM95071-Q1 Series

Automotive Grade, ±1°C Temperature Sensor with SPI Interface

Catalog

Automotive Grade, ±1°C Temperature Sensor with SPI Interface

Part	Mounting Type	Features	Sensing Temperature - Local [Min]	Sensing Temperature - Local [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Test Condition [Min]	Test Condition	Test Condition [Max]	Resolution	Grade	Package / Case	Supplier Device Package	Sensor Type	Output Type	Accuracy - Highest (Lowest)	Qualification	Sensing Range [Max]	Sensing Range [Min]	Interface	Utilized IC / Part	Supplied Contents	Sensitivity
Texas Instruments LM95071QIMFX/NOPB	Surface Mount	Shutdown Mode	-40 °C	150 °C	2.4 V	5.5 V	0 °C	-40°C ~ 150°C	70 °C	13 b	Automotive	SC-74A SOT-753	SOT-23-5	Digital Local	SPI	1 °C 2 ¯C	AEC-Q100
Texas Instruments LM95071CIMFX/NOPB	Surface Mount	Shutdown Mode	-40 °C	150 °C	2.4 V	5.5 V	0 °C	-40°C ~ 150°C	70 °C	13 b		SC-74A SOT-753	SOT-23-5	Digital Local	SPI	1 °C 2 ¯C
Texas Instruments LM95071CIMFX	Surface Mount	Shutdown Mode	-40 °C	150 °C	2.4 V	5.5 V	0 °C	-40°C ~ 150°C	70 °C	13 b		SC-74A SOT-753	SOT-23-5	Digital Local	SPI	1 °C 2 ¯C

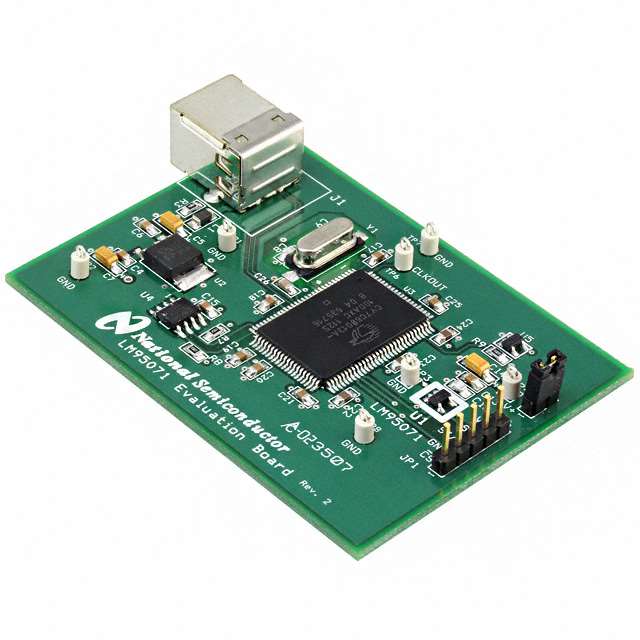

Texas Instruments LM95071EVAL/NOPB					2.4 V	5.5 V								Temperature				150 °C	-40 °C	3-Wire Serial Microwire SPI	LM95071	Board(s)	1 °C
Texas Instruments LM95071QIMF/NOPB	Surface Mount	Shutdown Mode	-40 °C	150 °C	2.4 V	5.5 V	0 °C	-40°C ~ 150°C	70 °C	13 b	Automotive	SC-74A SOT-753	SOT-23-5	Digital Local	SPI	1 °C 2 ¯C	AEC-Q100

Catalog

Automotive Grade, ±1°C Temperature Sensor with SPI Interface

Key Features

• AEC-Q100 Qualified for Automotive ApplicationsDevice Temperature Grade 0: –40°C to +150°C, TASmall SOT-23 Package Saves SpaceShutdown Mode Conserves Power Between Temperature ReadingsOperates Over a Full −40°C to +150°C RangeSPI and MICROWIRE Bus InterfaceKey SpecificationsSupply Voltage: 2.4 V to 5.5 VSupply CurrentOperating: 280 µA (Typical)Shutdown: 6 µA (Typical)Temperature Accuracy0°C to 70°C ±1°C (Maximum)−40°C to 150°C ±2°C (Maximum)Temperature Resolution 0.03125°CAEC-Q100 Qualified for Automotive ApplicationsDevice Temperature Grade 0: –40°C to +150°C, TASmall SOT-23 Package Saves SpaceShutdown Mode Conserves Power Between Temperature ReadingsOperates Over a Full −40°C to +150°C RangeSPI and MICROWIRE Bus InterfaceKey SpecificationsSupply Voltage: 2.4 V to 5.5 VSupply CurrentOperating: 280 µA (Typical)Shutdown: 6 µA (Typical)Temperature Accuracy0°C to 70°C ±1°C (Maximum)−40°C to 150°C ±2°C (Maximum)Temperature Resolution 0.03125°C

Description

The LM95071-Q1 is a low-power, high-resolution digital temperature sensor with an SPI and MICROWIRE compatible interface, available in the 5-pin SOT-23. The host can query the LM95071-Q1 at any time to read temperature. Its low operating current is useful in systems where low power consumption is critical. The LM95071-Q1 has 13-bit plus sign temperature resolution (0.03125°C per LSB) while operating over a temperature range of −40°C to +150°C. The 2.4-V to 5.5-V supply voltage range, fast conversion rate, low supply current, and simple SPI interface of the LM95071-Q1 make it ideal for a wide range of applications. The LM95071-Q1 is a low-power, high-resolution digital temperature sensor with an SPI and MICROWIRE compatible interface, available in the 5-pin SOT-23. The host can query the LM95071-Q1 at any time to read temperature. Its low operating current is useful in systems where low power consumption is critical. The LM95071-Q1 has 13-bit plus sign temperature resolution (0.03125°C per LSB) while operating over a temperature range of −40°C to +150°C. The 2.4-V to 5.5-V supply voltage range, fast conversion rate, low supply current, and simple SPI interface of the LM95071-Q1 make it ideal for a wide range of applications.
