4214N Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

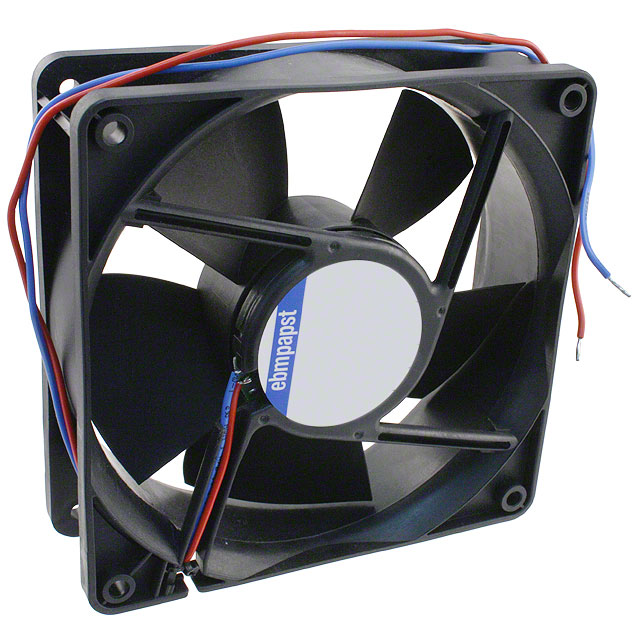

FAN AXIAL 119X38MM 24VDC WIRE
| Part | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Material - Blade | Voltage - Rated | Noise | Width [y] | Bearing Type | Air Flow | Air Flow | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Weight [custom] | Weight [custom] | Fan Type | RPM | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 28 V | 12 VDC | 70000 Hrs | Polyamide (PA) Nylon Fiberglass Reinforced | 24 VDC | 35 dB | 38 mm | Sintec | 2.09 m³/min | 74.7 CFM | Square | 119 mm | 119 mm | 2.3 W | -20 ░C | 70 °C | 0.507 lb | 229.97 g | Tubeaxial | 2150 RPM | 2 Wire Leads |
ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 28 V | 12 VDC | 70000 Hrs | Polyamide (PA) Nylon Fiberglass Reinforced | 24 VDC | 38 dB(A) | 38 mm | Sintec | 2.38 m³/min | 85 CFM | Square | 119 mm | 119 mm | 3.1 W | -20 ░C | 70 °C | 0.507 lb | 229.97 g | Tubeaxial | 2450 RPM | 2 Wire Leads |
