PEC22 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 44POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Insulation Material	Number of Positions	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Finish - Post	Material Flammability Rating	Style	Pitch - Mating	Pitch - Mating	Contact Type	Contact Shape	Contact Material	Number of Positions Loaded	Number of Rows [custom]	Insulation Color	Fastening Type	Termination	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post [custom]	Contact Length - Post [custom]
Sullins Connector Solutions PEC22DBAN	2.54 µm	100 µin	3 A	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	44	Right Angle Through Hole	0.1 in	2.54 mm	Header Breakaway	100 çin	2.54 çm	Unshrouded	Tin	UL94 V-0	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Square	Phosphor Bronze	All	2	Black	Push-Pull	Solder	0.1 in	2.54 mm	6.1 mm	0.24 in	-65 ░C	125 °C

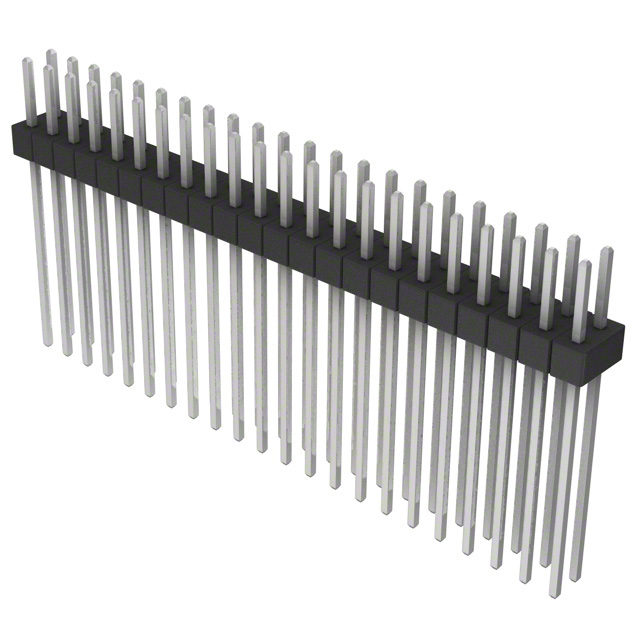

Sullins Connector Solutions PEC22DAHN	2.54 µm	100 µin	3 A	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	44	Through Hole	0.1 in	2.54 mm	Header Breakaway	100 çin	2.54 çm	Unshrouded	Tin	UL94 V-0	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Square	Phosphor Bronze	All	2	Black	Push-Pull	Solder	0.82 in	20.83 mm			-65 ░C	125 °C	0.1 in	2.54 mm	29.21 mm	1.15 in

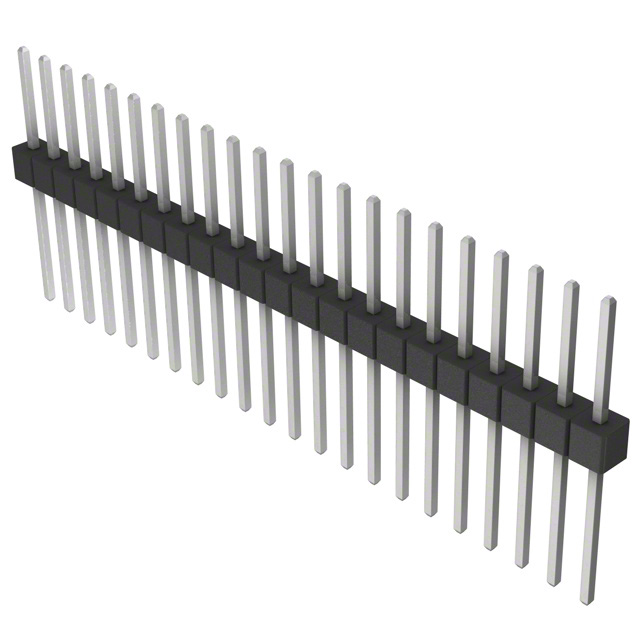

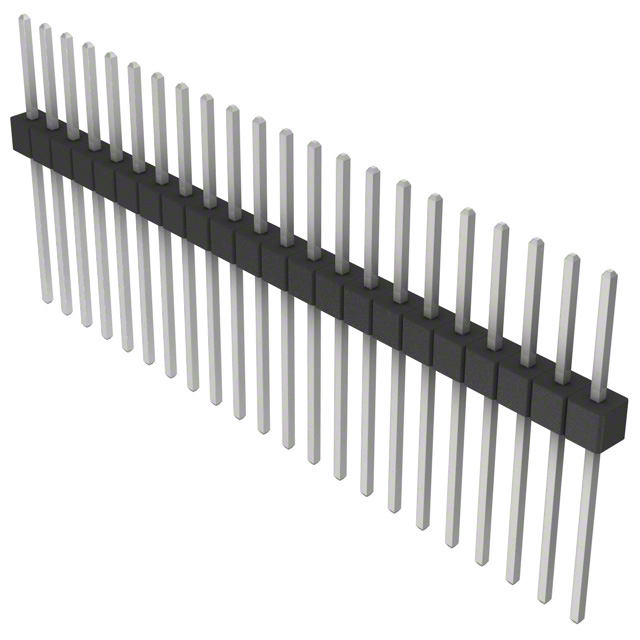

Sullins Connector Solutions PEC22SFDN	2.54 µm	100 µin	3 A	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	22	Through Hole			Header Breakaway	100 çin	2.54 çm	Unshrouded	Tin	UL94 V-0	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Square	Phosphor Bronze	All		Black	Push-Pull	Solder	0.42 in	10.67 mm			-65 ░C	125 °C	0.1 in	2.54 mm	21.29 mm	0.838 in	1
Sullins Connector Solutions PEC22DADN	2.54 µm	100 µin	3 A	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	44	Through Hole	0.1 in	2.54 mm	Header Breakaway	100 çin	2.54 çm	Unshrouded	Tin	UL94 V-0	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Square	Phosphor Bronze	All	2	Black	Push-Pull	Solder	0.42 in	10.67 mm			-65 ░C	125 °C	0.1 in	2.54 mm				19.05 mm	0.75 in
Sullins Connector Solutions PEC22DBEN	2.54 µm	100 µin	3 A	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	44	Right Angle Through Hole	0.1 in	2.54 mm	Header Breakaway	100 çin	2.54 çm	Unshrouded	Tin	UL94 V-0	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Square	Phosphor Bronze	All	2	Black	Push-Pull	Solder	0.5 "	12.7 mm	6.1 mm	0.24 in	-65 ░C	125 °C

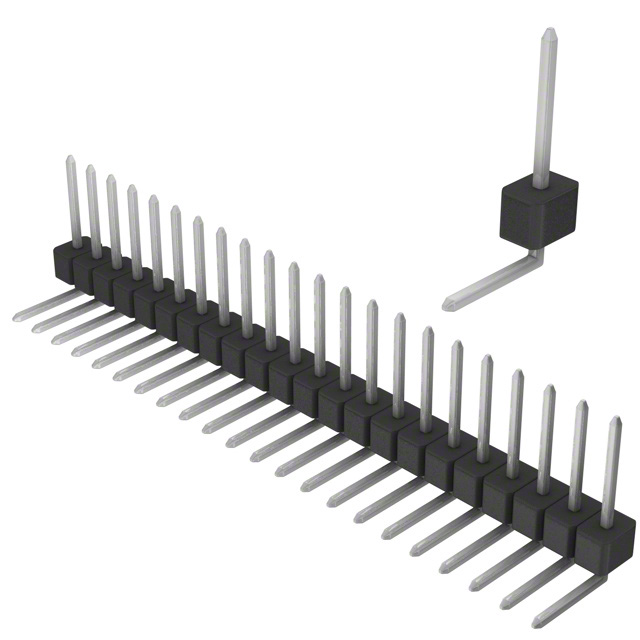

Sullins Connector Solutions PEC22SGBN	2.54 µm	100 µin	3 A	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	22	Right Angle Through Hole			Header Breakaway	100 çin	2.54 çm	Unshrouded	Tin	UL94 V-0	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Square	Phosphor Bronze	All		Black	Push-Pull	Solder					-65 ░C	125 °C	0.14 in	3.56 mm			1			5.08 mm	0.2 "

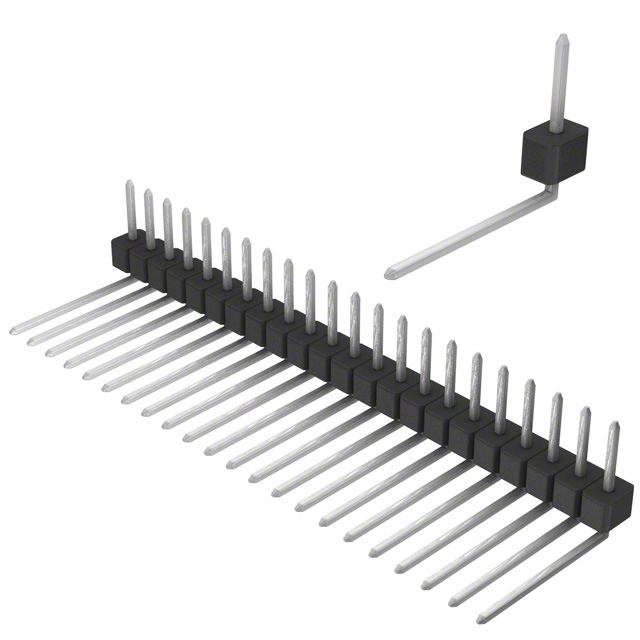

Sullins Connector Solutions PEC22SBEN	2.54 µm	100 µin	3 A	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	22	Right Angle Through Hole			Header Breakaway	100 çin	2.54 çm	Unshrouded	Tin	UL94 V-0	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Square	Phosphor Bronze	All		Black	Push-Pull	Solder	0.5 "	12.7 mm			-65 ░C	125 °C	0.14 in	3.56 mm			1
Sullins Connector Solutions PEC22DGBN	2.54 µm	100 µin	3 A	0.318 in	8.08 mm	Polybutylene Terephthalate (PBT)	44	Right Angle Through Hole	0.1 in	2.54 mm	Header Breakaway	100 çin	2.54 çm	Unshrouded	Tin	UL94 V-0	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Square	Phosphor Bronze	All	2	Black	Push-Pull	Solder			6.1 mm	0.24 in	-65 ░C	125 °C								5.08 mm	0.2 "

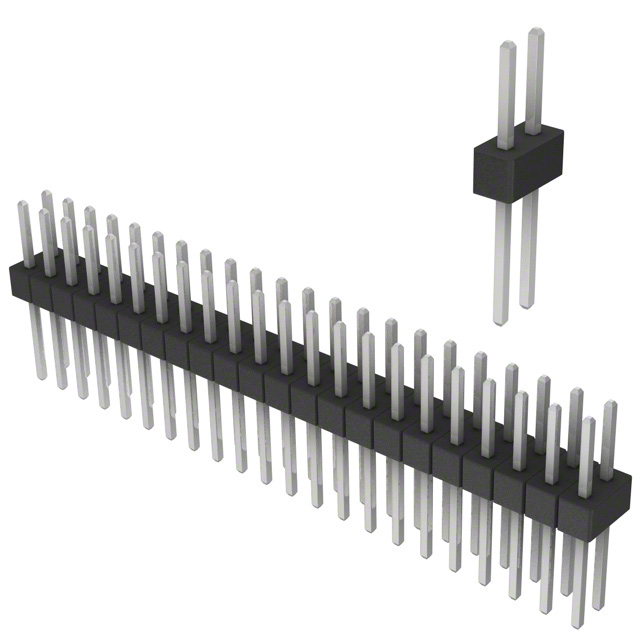

Sullins Connector Solutions PEC22DACN	2.54 µm	100 µin	3 A	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	44	Through Hole	0.1 in	2.54 mm	Header Breakaway	100 çin	2.54 çm	Unshrouded	Tin	UL94 V-0	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Square	Phosphor Bronze	All	2	Black	Push-Pull	Solder	0.32 in	8.13 mm			-65 ░C	125 °C	0.1 in	2.54 mm	16.51 mm	0.65 in
Sullins Connector Solutions PEC22DBCN	2.54 µm	100 µin	3 A	0.23 in	5.84 mm	Polybutylene Terephthalate (PBT)	44	Right Angle Through Hole	0.1 in	2.54 mm	Header Breakaway	100 çin	2.54 çm	Unshrouded	Tin	UL94 V-0	Board to Board Cable	0.1 "	2.54 mm	Male Pin	Square	Phosphor Bronze	All	2	Black	Push-Pull	Solder	0.3 in	7.62 mm	6.1 mm	0.24 in	-65 ░C	125 °C
