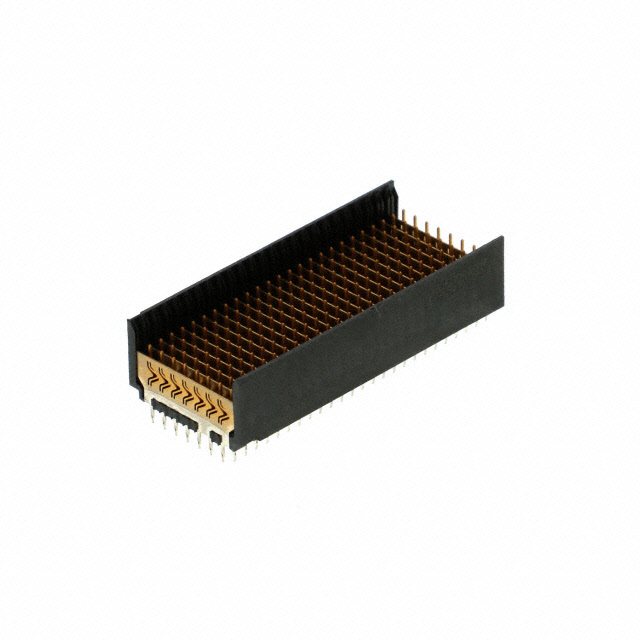

074060 Series

Manufacturer: Molex

Catalog

CONN VHDM HDR 200 POS 1MM PRESS FIT ST THRU-HOLE VHDM® TUBE

Part	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Pitch [x]	Pitch [x]	Color	Mounting Type	Voltage Rating	Material Flammability Rating	Connector Type	Features	Connector Style	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Columns	Number of Rows	Number of Positions
Molex 0740602504	All	0.76 Ám	30 Áin	3 A	0.079 in	2 mm	Black	Through Hole	120 VDC	UL94 V-0	Header Male Pins	Shielded	VHDM	Press-Fit	105 ░C	-55 °C	Gold	25 columns	8
Molex 0740601006	All	1.27 µm	50 µin	3 A	0.079 in	2 mm	Black	Through Hole	120 VDC	UL94 V-0	Header Male Pins	Shielded	VHDM	Press-Fit	105 ░C	-55 °C	Gold	10	8	80
Molex 0740609001	All	0.76 Ám	30 Áin	3 A	0.079 in	2 mm	Black	Through Hole	120 VDC	UL94 V-0	Header Male Pins	Shielded	VHDM	Press-Fit	105 ░C	-55 °C	Gold	10	8	80
Molex 0740601003	All	0.76 Ám	30 Áin	3 A	0.079 in	2 mm	Black	Through Hole	120 VDC	UL94 V-0	Header Male Pins	Shielded	VHDM	Press-Fit	105 ░C	-55 °C	Gold	10	8	80
Molex 0740601004	All	0.76 Ám	30 Áin	3 A	0.079 in	2 mm	Black	Through Hole	120 VDC	UL94 V-0	Header Male Pins	Shielded	VHDM	Press-Fit	105 ░C	-55 °C	Gold	10	8	80
Molex 0740602502	All	0.76 Ám	30 Áin	3 A	0.079 in	2 mm	Black	Through Hole	120 VDC	UL94 V-0	Header Male Pins	Shielded	VHDM	Press-Fit	105 ░C	-55 °C	Gold	25 columns	8
