SS-74401 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

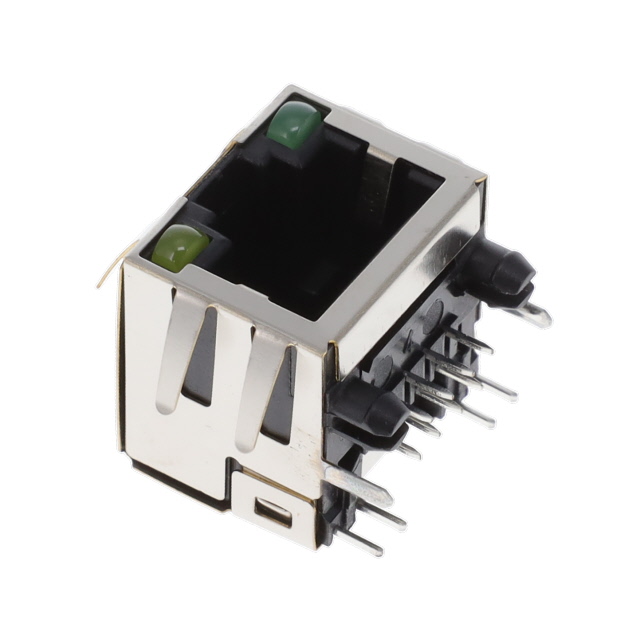

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT
| Part | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Termination | Tab Direction | LED Color | Number of Rows | Contact Material | Features | Number of Ports | Orientation | Number of Positions/Contacts | Mounting Type | Shielding | Connector Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -40 C | 50 µin | 1.27 µm | Solder | Up | Yellow - Green | 1 | Phosphor Bronze | Board Lock | 1 | 90 ° | 8p8c (RJ45 Ethernet) | Through Hole | EMI Finger Shielded | Jack | Gold |
