ACB86 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

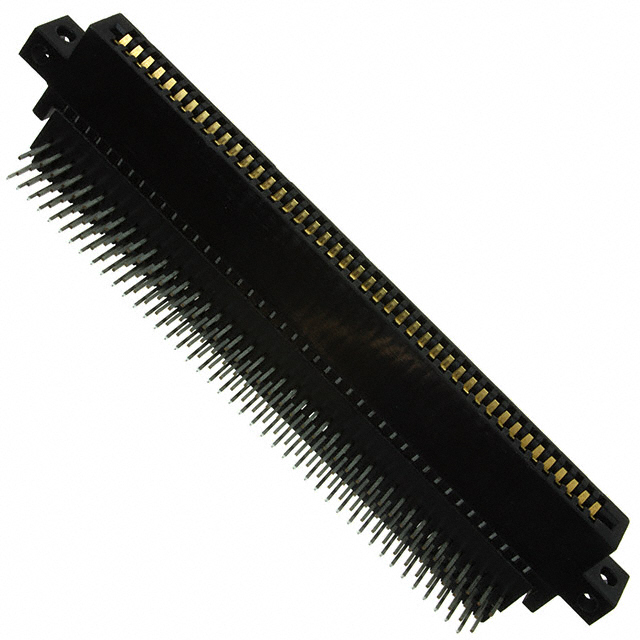

CONN EDGE DUAL FML 172POS 0.100
| Part | Color | Contact Finish Thickness | Contact Finish Thickness | Read Out | Contact Material | Number of Rows [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Termination | Contact Finish | Features | Number of Positions/Bay/Row | Number of Positions | Contact Type | Pitch | Pitch | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Thickness | Card Thickness | Card Type | Gender | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Black | 30 Áin | 0.76 Ám | Dual | Beryllium Copper | 2 | 150 °C | -65 ░C | Polyphenylene Sulfide (PPS) | Solder | Gold | Bi-Level - High Density | 86 | 172 | Cantilever | 0.1 " | 2.54 mm | Side Mount Opening Staggered Ears Unthreaded | 0.125 " | 3.18 mm | 1.57 mm | 0.062 in | Non Specified - Dual Edge Bi-Level | Female | Right Angle Through Hole |
Sullins Connector Solutions | Black | 30 Áin | 0.76 Ám | Dual | Beryllium Copper | 2 | 150 °C | -65 ░C | Polyphenylene Sulfide (PPS) | Solder | Gold | Bi-Level - High Density Card Extender | 86 | 172 | Cantilever | 0.1 " | 2.54 mm | 0.125 " | 3.18 mm | 1.57 mm | 0.062 in | Non Specified - Dual Edge Bi-Level | Female | Board Edge Straddle Mount |
