LAA300 Series
Manufacturer: Panduit Corp
Beta
⌘K

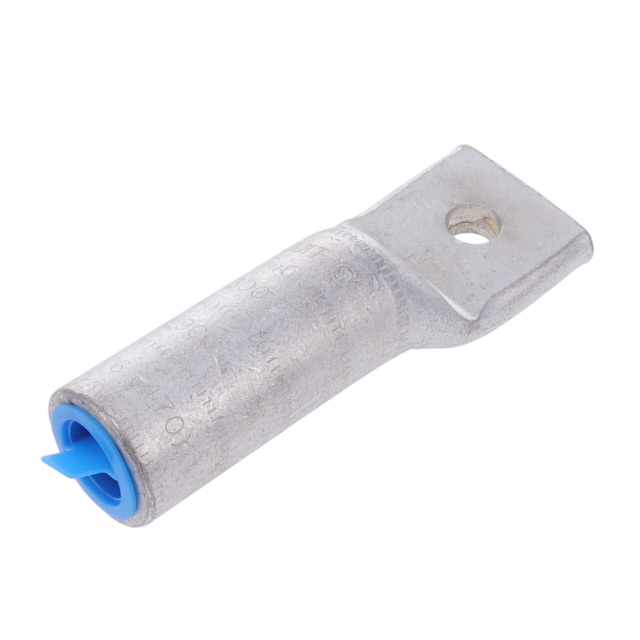

CONN TERM RECT TONG 300 MCM #3/8
| Part | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Contact Material | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Contact Finish | Features | Stud/Tab Size | Terminal Style | Wire Gauge | Insulation | Length - Overall | Termination | Tab Thickness [custom] | Tab Thickness [custom] | Mounting Type | Width - Outer Edges [x] | Width - Outer Edges [x] | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 1.01 in | 25.65 mm | Aluminum | 0.65 in | 16.51 mm | Tin | Gel Filled | 0.375 Stud | Single Stud Hole | 300 MCM (kcmil) | Non-Insulated | 101.6 mm | Barrel Crimp | 0.343 in | 8.71 mm | Free Hanging (In-Line) | 1.375 in | 34.93 mm | Rectangular Tongue |
 Panduit Corp | 1.01 in | 25.65 mm | Aluminum | 0.65 in | 16.51 mm | Tin | Gel Filled | 0.5 Stud | Single Stud Hole | 300 MCM (kcmil) | Non-Insulated | 101.6 mm | Barrel Crimp | 0.343 in | 8.71 mm | Free Hanging (In-Line) | 1.375 in | 34.93 mm | Rectangular Tongue |
