PL83 Series
Manufacturer: iNRCORE
Beta
⌘K

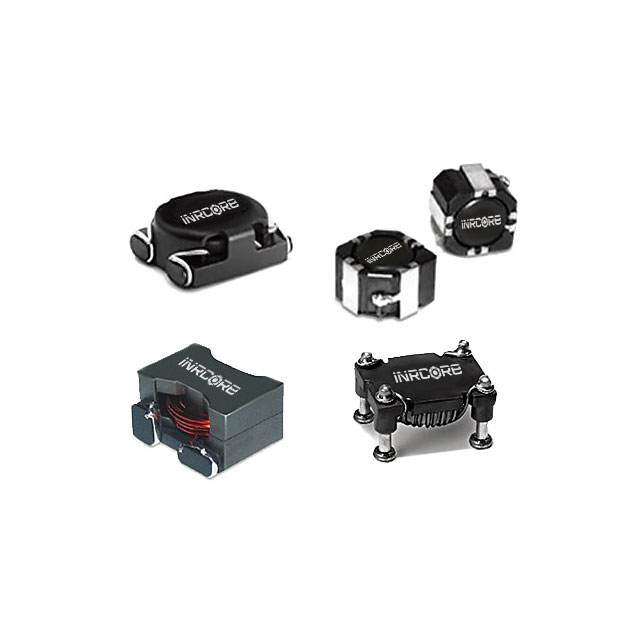

FIXED IND 13.8UH 17A 6.4MOHM SMD
| Part | Shielding | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Inductance Frequency - Test | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Type | Package / Case | DC Resistance (DCR) [Max] | Inductance | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 iNRCORE | Unshielded | Surface Mount | 1 " | 25.4 mm | 1.22 in | 30.99 mm | 300 kHz | 0.5 in | 12.7 mm | Toroidal | Nonstandard | 6.4 mOhm | 13.8 µH | 130 °C | -55 C | 17 A |
