Slim-Mox Series

Manufacturer: Ohmite

Catalog

THICK FILM RESISTORS - THROUGH HOLE 4M OHMS 1%

Part	Features	Package / Case	Power (Watts)	Supplier Device Package	Composition	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Number of Terminations [custom]	Resistance	Tolerance	Power (Watts)

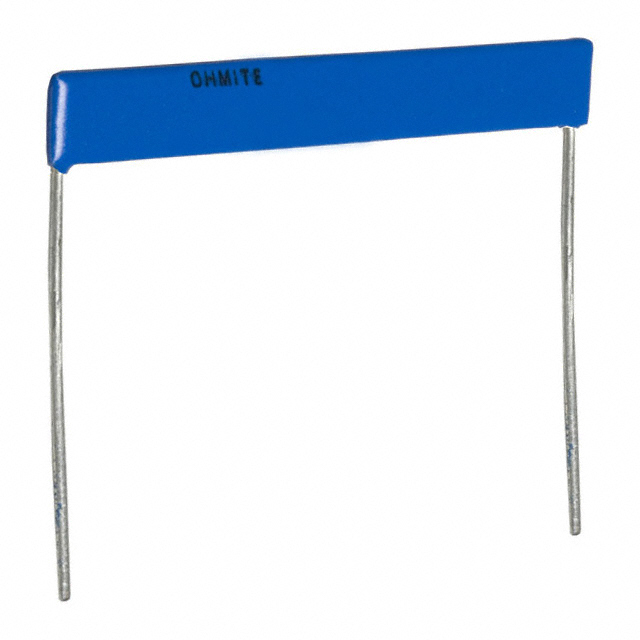

Ohmite SM108034004FE	High Voltage Non-Inductive	Radial	2.5 W	Radial	Thick Film	-55 C	110 °C	2.54 mm	52.83 mm	2.08 in	0.1 in	0.34 in	8.64 mm	50 ppm/░C	2	4 MOhms	1 %
Ohmite SM101032205FE	High Voltage Non-Inductive	Radial	0.5 W	Radial	Thick Film	-55 C	180 °C	2.54 mm	8.38 mm	0.33 in	0.1 in	0.34 in	8.64 mm	50 ppm/░C	2	22 MOhms	1 %	0.5 W

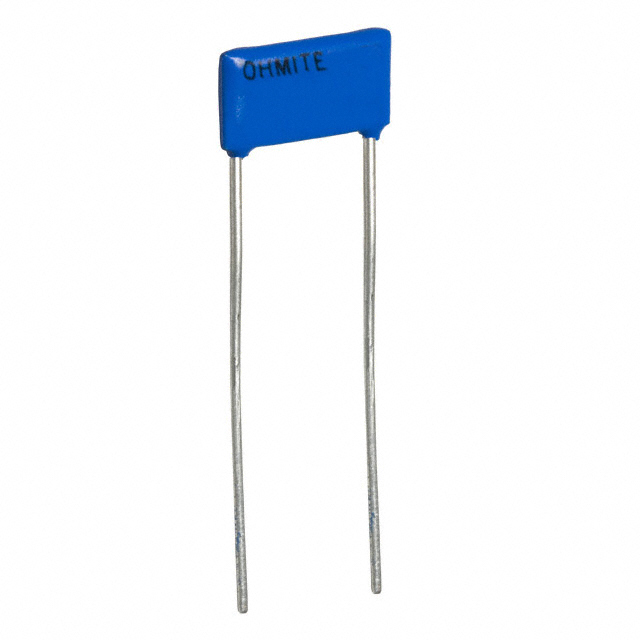

Ohmite SM102031005J	High Voltage Non-Inductive	Radial	1 W	Radial	Thick Film	-55 C	110 °C	2.54 mm	0.58 in 14.73 mm			0.34 in	8.64 mm	50 ppm/░C	2	10 MOhms	5 %
Ohmite SM108034007FE	Current Sense High Voltage Non-Inductive	Radial	2.5 W	Radial	Thick Film	-55 C	110 °C	2.54 mm	52.83 mm	2.08 in	0.1 in	0.34 in	8.64 mm	100 ppm/°C	2	4 GOhms	1 %
Ohmite SM102031002JE	High Voltage Non-Inductive	Radial	1 W	Radial	Thick Film	-55 C	110 °C	2.54 mm	0.58 in 14.73 mm			0.34 in	8.64 mm	50 ppm/░C	2	10000 Ohms	5 %
Ohmite SM102034003FE	High Voltage Non-Inductive	Radial	1 W	Radial	Thick Film	-55 C	110 °C	2.54 mm	0.58 in 14.73 mm			0.34 in	8.64 mm	50 ppm/░C	2	400 kOhms	1 %
Ohmite SM102033004FE	High Voltage Non-Inductive	Radial	1 W	Radial	Thick Film	-55 C	110 °C	2.54 mm	0.58 in 14.73 mm			0.34 in	8.64 mm	50 ppm/░C	2	3 MOhms	1 %
Ohmite SM104031005FE	High Voltage Non-Inductive	Radial	1.5 W	Radial	Thick Film	-55 C	110 °C	2.54 mm	1.08 in 27.43 mm			0.34 in	8.64 mm	50 ppm/░C	2	10 MOhms	1 %
Ohmite SM108032003FE	High Voltage Non-Inductive	Radial	2.5 W	Radial	Thick Film	-55 C	110 °C	2.54 mm	52.83 mm	2.08 in	0.1 in	0.34 in	8.64 mm	50 ppm/░C	2	200000 Ohms	1 %
Ohmite SM108035007FE	High Voltage Non-Inductive	Radial	2.5 W	Radial	Thick Film	-55 C	110 °C	2.54 mm	52.83 mm	2.08 in	0.1 in	0.34 in	8.64 mm	100 ppm/°C	2	5 GOhms	1 %
