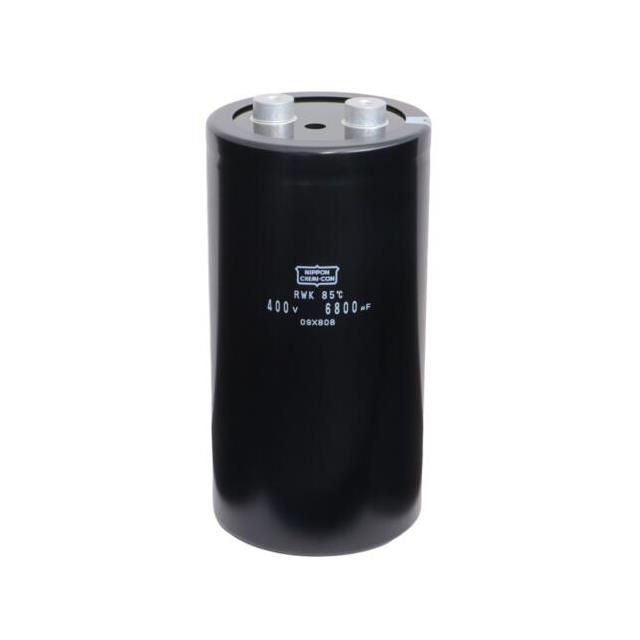

RWK Series
Manufacturer: Chemi-Con
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - SCREW TERMINAL
| Part | Ripple Current @ Low Frequency | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Tolerance | Package / Case | Lead Spacing | Lead Spacing | Polarization | Capacitance | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Ripple Current @ High Frequency | Applications | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Lifetime @ Temp. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Chemi-Con | 30.8 A | 189 mm | 7.441 " | 20 % | Radial Can - Screw Terminals | 1.102 in | 28 mm | Polar | 6800 µF | 85 °C | -40 C | 350 V | 43.12 A | General Purpose | 63.5 mm | 2.5 in | Chassis Mount | 5000 Hrs |
