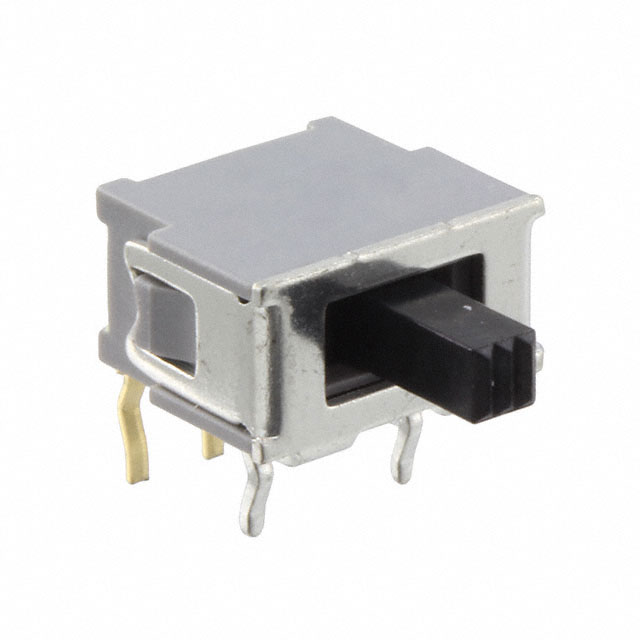

AS1D-5M Series

Catalog

SLIDE SWITCH, SPDT, 0.05A, 48V, TH

Part	Circuit	Contact Finish	Termination Style	Voltage Rating - AC	Operating Force [Max]	Operating Force [Min]	Mounting Type	Switch Function	Voltage Rating - DC	Actuator Length [x]	Actuator Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Timing	Electrical Life	Switch Travel [custom]
Nidec Components Corporation AS1D-5M-10-Z	SPDT	Gold	PC Pin	48 V	500 gf	70 gf	Through Hole Right Angle	On-On	48 V	4.3 mm	Standard	50 mA	85 °C	-20 C	Non-Shorting	10000 Cycles	2.2 mm
