RXG21 Series

Catalog

POWER RELAY, DPDT, 6 VDC, 5 A, ZELIO RXG SERIES, SOCKET

Part	Coil Resistance	Relay Type	Contact Material	Load - Max Switching	Contact Form	Coil Type	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Coil Insulation	Mounting Type	Release Time	Must Release Voltage	Termination Style	Features	Contact Rating (Current)	Operate Time	Switching Voltage [Max]	Coil Voltage	Must Operate Voltage
SCHNEIDER ELECTRIC RXG21RD	68 Ohms	General Purpose	Silver Tin Oxide Indium Oxide (AgSnOInO)	150 W 1250 VA	DPDT (2 Form C)	Non Latching	88.2 mA	70 °C	-40 C	CE CSA DNV-GL EAC UL	Class F	Chassis Mount	20 ms	0.6 VDC	Plug In	Test Button	5 A	20 ms	30 VDC 250 VAC
SCHNEIDER ELECTRIC RXG21E7		General Purpose	Silver Tin Oxide Indium Oxide (AgSnOInO)	150 W 1250 VA	DPDT (2 Form C)	Non Latching		70 °C	-40 C	CE CSA DNV-GL EAC UL		Socketable	20 ms	14.4 VAC	Plug In	Test Button	5 A	20 ms	30 VDC 250 VAC	48 VAC	38.4 VAC

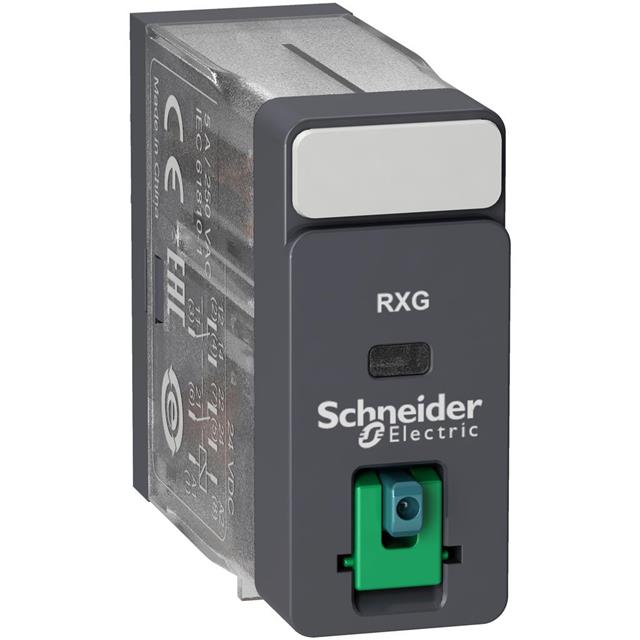

SCHNEIDER ELECTRIC RXG21BD		General Purpose	Silver Tin Oxide Indium Oxide (AgSnOInO)	150 W 1250 VA	DPDT (2 Form C)	Non Latching		70 °C	-40 C	CE CSA DNV-GL EAC UL		Socketable	20 ms	2.4 VDC	Plug In	Lighted Indicator	5 A	20 ms	30 VDC 250 VAC	24 VDC
SCHNEIDER ELECTRIC RXG21JD	270 Ohms	General Purpose	Silver Tin Oxide Indium Oxide (AgSnOInO)	150 W 1250 VA	DPDT (2 Form C)	Non Latching	44.4 mA	70 °C	-40 C	CE CSA DNV-GL EAC UL	Class F	Socketable	20 ms	1.2 VDC	Plug In	Test Button	5 A	20 ms	30 VDC 250 VAC	12 VDC
SCHNEIDER ELECTRIC RXG21P7		General Purpose	Silver Tin Oxide Indium Oxide (AgSnOInO)	150 W 1250 VA	DPDT (2 Form C)	Non Latching		70 °C	-40 C	CE CSA DNV-GL EAC UL		Socketable	20 ms	69 VAC	Plug In	Test Button	5 A	20 ms	30 VDC 250 VAC	230 VAC	184 VAC
SCHNEIDER ELECTRIC RXG21F7	6.3 kOhms	General Purpose	Silver Tin Oxide Indium Oxide (AgSnOInO)	150 W 1250 VA	DPDT (2 Form C)	Non Latching	19 mA	70 °C	-40 C	CE CSA DNV-GL EAC UL	Class F	Socketable	20 ms	36 VAC	Plug In	Test Button	5 A	20 ms	30 VDC 250 VAC	120 VAC	96 VAC
