har-bus 64 Series
Manufacturer: HARTING
Beta
⌘K
BOARD-TO-BOARD CONNECTOR, SHROUDED, HAR-BUS 64 SERIES, SOLDER, PLUG, 160, 2.54 MM ROHS COMPLIANT: YES
| Part | Accessory Type | For Use With/Related Products | Material Flammability Rating | Level, Class [custom] | Pitch | Pitch | Contact Finish | Features | Number of Positions Loaded | Contact Finish Thickness | Number of Rows | Number of Positions [custom] | Number of Positions [custom] | Mounting Type | Connector Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Pin or Socket | Type | Contact Termination | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Shroud | DIN 41612 | ||||||||||||||||||||||

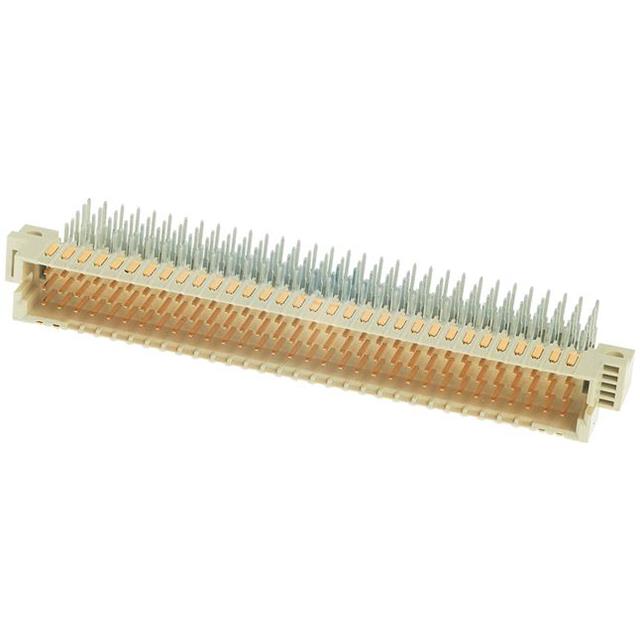

 HARTING | UL94 V-0 | 1 | 0.1 " | 2.54 mm | Gold | Mounting Clips | All | Flash | 5 | 96 | 64 | Right Angle Through Hole | Header Male Pins | Solder | ||||||||||
 HARTING | UL94 V-0 | 0.1 " | 2.54 mm | Gold | All | 5 | 96 | 64 | Through Hole | Receptacle Female Sockets | Press-Fit | -40 C | 105 ░C | |||||||||||

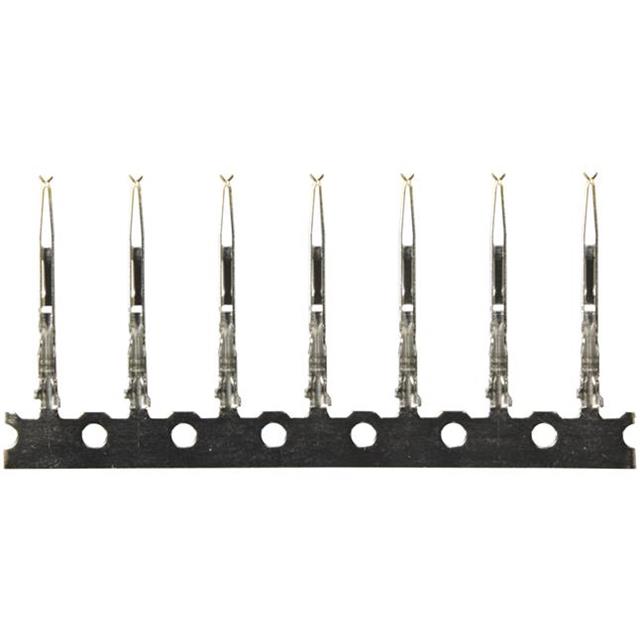

 HARTING | Gold | 1 A | Socket | Signal | Crimp | 28 AWG | 19.5 AWG |
