F93 Series

Catalog

TANTALUM CAPACITORS - SOLID SMD 6.3V 220UF 10% 1211 ESR= 1.2 OHM

Part	Manufacturer Size Code	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Lifetime @ Temp.	Package / Case	Package / Case	Capacitance	ESR (Equivalent Series Resistance)	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Type	Mounting Type	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

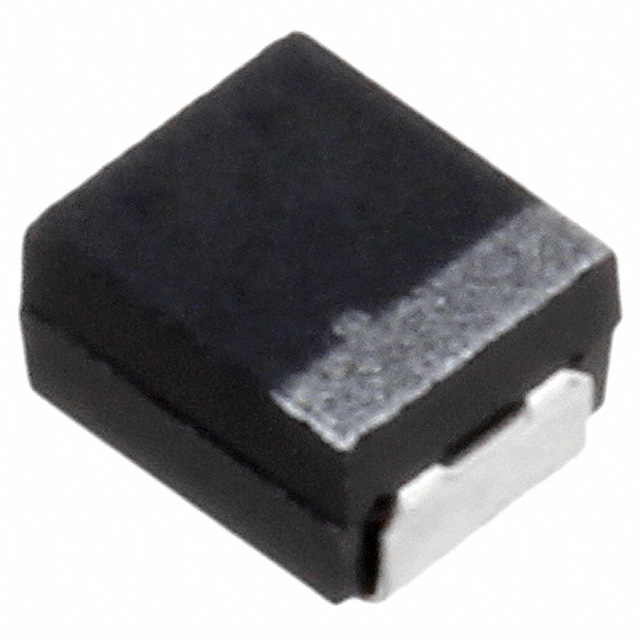

KYOCERA AVX F930J227KBA	B	2.3 mm	0.091 in	3.5 mm	0.11 "	2.8 mm	0.138 in	2000 Hrs	3528 Metric	1411	220 µF	1.2 Ohm	6.3 VDC	-55 C	125 °C	10 %	Molded	Surface Mount	General Purpose
KYOCERA AVX F931C336MNC

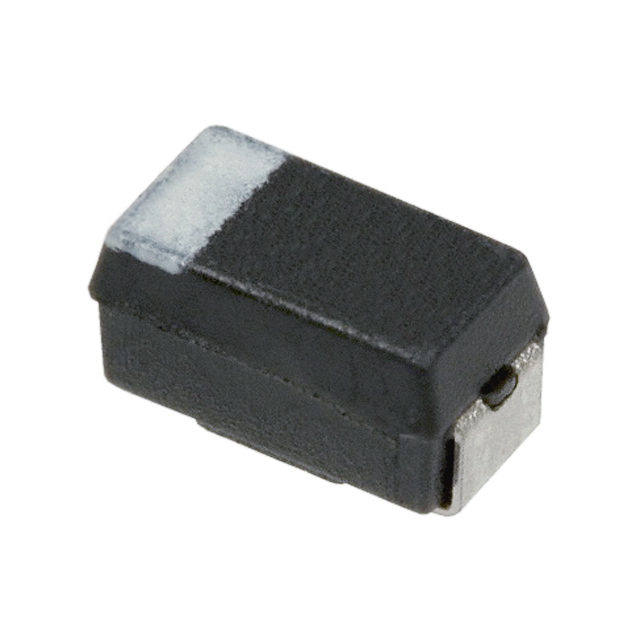

KYOCERA AVX F931C685KAA	A		1.8 mm	3.2 mm	0.063 "	1.6 mm	0.126 "	2000 Hrs		1206 (3216 Metric)	6.8 µF	3.5 Ohm	16 V	-55 C	125 °C	10 %	Molded	Surface Mount	General Purpose	0.071 in
KYOCERA AVX F931E226MNG
KYOCERA AVX F931A157KNC	N			7.3 mm	0.169 "	4.3 mm	0.287 "	2000 Hrs		2917 (7343 Metric)	150 µF	600 mOhm	10 V	-55 C	125 °C	10 %	Molded	Surface Mount	General Purpose		0.118 "	3 mm
KYOCERA AVX F931D106MBA	B	2.3 mm	0.091 in	3.5 mm	0.11 "	2.8 mm	0.138 in	2000 Hrs	3528 Metric	1411	10 µF	2.1 Ohm	20 V	-55 C	125 °C	20 %	Molded	Surface Mount	General Purpose
KYOCERA AVX F931C335KAA	A		1.8 mm	3.2 mm	0.063 "	1.6 mm	0.126 "	2000 Hrs		1206 (3216 Metric)	3.3 µF	4.5 Ohm	16 V	-55 C	125 °C	10 %	Molded	Surface Mount	General Purpose	0.071 in
KYOCERA AVX F931D225MAA	A		1.8 mm	3.2 mm	0.063 "	1.6 mm	0.126 "	2000 Hrs		1206 (3216 Metric)	2.2 µF	5 Ohm	20 V	-55 C	125 °C	20 %	Molded	Surface Mount	General Purpose	0.071 in

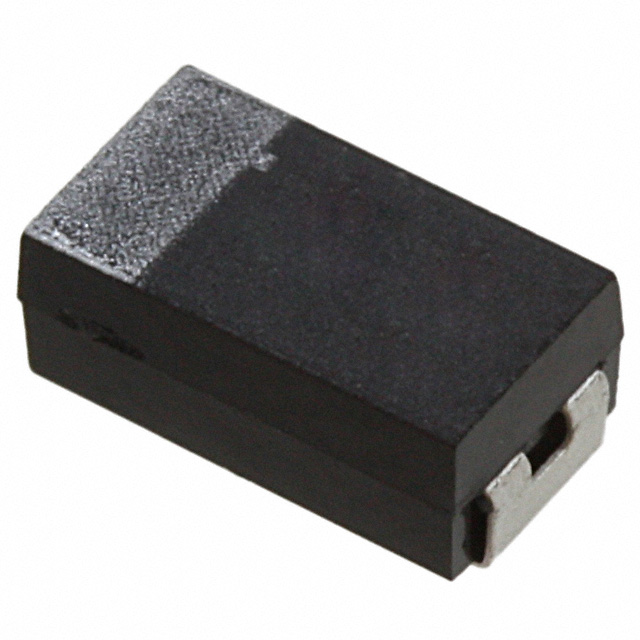

KYOCERA AVX F930J107MCC				6 mm	0.126 in	3.2 mm	0.236 in	2000 Hrs		2312 (6032 Metric)	100 µF	700 mOhm	6.3 VDC	-55 C	125 °C	20 %	Molded	Surface Mount	General Purpose
KYOCERA AVX F930J227MBA	B	2.3 mm	0.091 in	3.5 mm	0.11 "	2.8 mm	0.138 in	2000 Hrs	3528 Metric	1411	220 µF	1.2 Ohm	6.3 VDC	-55 C	125 °C	20 %	Molded	Surface Mount	General Purpose
