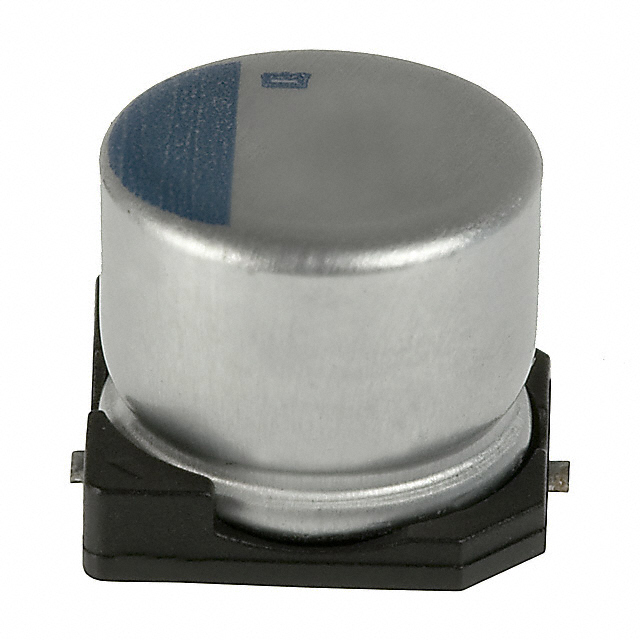

PXH Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS 10VOLTS 120UF 20%

Part	Package / Case	Applications	Voltage - Rated	Capacitance	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Lifetime @ Temp.	Ripple Current @ High Frequency	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con APXH100ARA121MH70G	Radial Can - SMD	General Purpose	10 V	120 µF	Polymer	0.315 in	8 mm	20 %	1000 Hrs	2.8 A	8.3 mm	8.3 mm	0.327 in	0.327 in	-55 C	125 °C	Surface Mount	35 mOhms	0.264 in	6.7 mm
Chemi-Con APXH2R5ARA561MH70G	Radial Can - SMD	General Purpose	2.5 V	560 µF	Polymer	0.315 in	8 mm	20 %	1000 Hrs	3.1 A	8.3 mm	8.3 mm	0.327 in	0.327 in	-55 C	125 °C	Surface Mount	30 mOhms			0.276 in	7 mm
