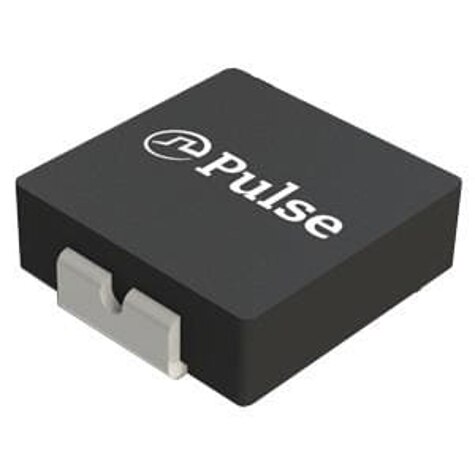

PA4345.XXXNLT Series
Power Inductors - SMD 0.47uH 11.5A 2mm 20% Low Prof
Manufacturer: Pulse Electronics
Catalog
Power Inductors - SMD 0.47uH 11.5A 2mm 20% Low Prof
Beta
⌘K
Power Inductors - SMD 0.47uH 11.5A 2mm 20% Low Prof
Power Inductors - SMD 0.47uH 11.5A 2mm 20% Low Prof
Power Inductors - SMD 0.47uH 11.5A 2mm 20% Low Prof
| Part | Shielding | DC Resistance (DCR) [Max] | Inductance | Type | Tolerance | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Current - Saturation (Isat) | Current Rating (Amps) | Inductance Frequency - Test | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Shielded | 8.6 mOhm | 470 nH | Molded | 20 % | Surface Mount | 6 mm | 5.4 mm | 0.236 in | 0.213 " | Nonstandard | 18 A | 11.5 A | 100 kHz | -55 C | 125 °C | 0.079 in | 2 mm |
