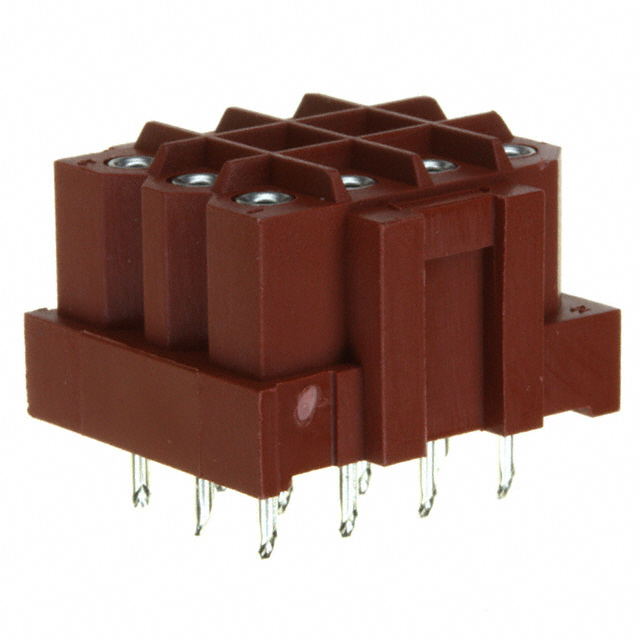

207528 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

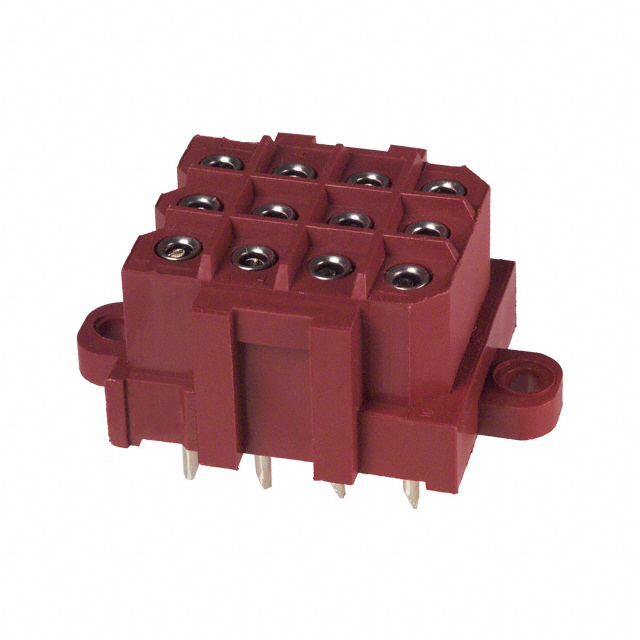

CONN HDR 12POS 0.197 TIN PCB
| Part | Number of Positions Loaded | Fastening Type | Contact Shape | Insulation Color | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Number of Positions | Style | Row Spacing - Mating | Row Spacing - Mating | Termination | Contact Material | Features | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Material Flammability Rating | Voltage Rating | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Connector Type | Contact Type | Number of Rows | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | All | Latch Holder | Circular | Black Red | 5 mm | 0.197 " | 0.565 in | 14.35 mm | 12 | Board to Cable/Wire | 5 mm | 0.197 in | Solder | Phosphor Bronze | Mounting Flange | 0.181 in | 4.6 mm | 150 Áin | 3.81 Ám | Nylon Polyamide (PA) | UL94 V-0 | 600 V | 7.5 A | 150 Áin | 3.81 Ám | Tin | Header | Female Socket | 3 | Through Hole | 130 °C | -55 °C | |
 TE Connectivity Raychem Cable Protection | All | Latch Holder | Circular | Black Red | 5 mm | 0.197 " | 0.565 in | 14.35 mm | 12 | Board to Cable/Wire | 5 mm | 0.197 in | Solder | Phosphor Bronze | 0.181 in | 4.6 mm | 30 Áin | 0.76 Ám | Nylon Polyamide (PA) | UL94 V-0 | 600 V | 7.5 A | 150 Áin | 3.81 Ám | Tin | Header | Female Socket | 3 | Through Hole | 130 °C | -55 °C | Gold PdNi +Gold | |
TE Connectivity Raychem Cable Protection | All | Latch Holder | Circular | Black Red | 5 mm | 0.197 " | 0.565 in | 14.35 mm | 12 | Board to Cable/Wire | 5 mm | 0.197 in | Solder | Phosphor Bronze | 0.181 in | 4.6 mm | 150 Áin | 3.81 Ám | Nylon Polyamide (PA) | UL94 V-0 | 600 V | 7.5 A | 150 Áin | 3.81 Ám | Tin-Lead | Header | Female Socket | 3 | Through Hole | 130 °C | -55 °C | Tin-Lead |
