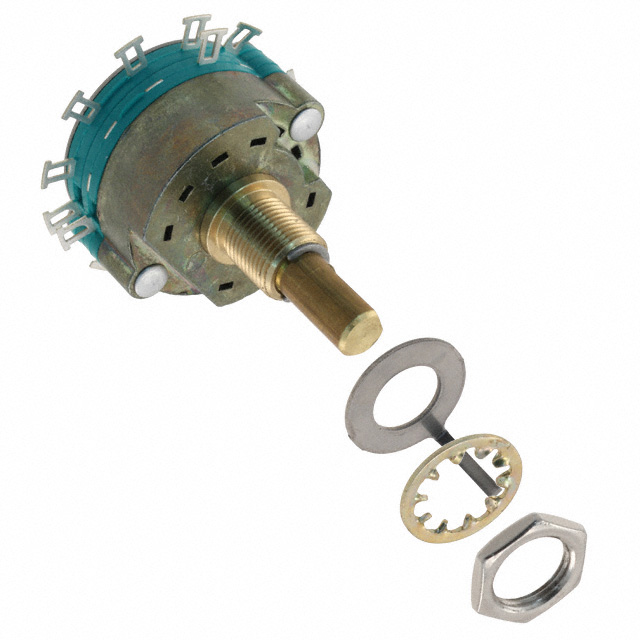

C4D0304 Series
Manufacturer: Electroswitch
Beta
⌘K
SWITCH ROTARY 2-4POS 300MA 125V
| Part | Panel Cutout Dimensions [diameter] | Number of Poles per Deck | Current Rating (Amps) | Voltage Rating - AC | Mounting Type | Contact Material | Voltage Rating - DC | Number of Decks [custom] | Contact Finish | Termination Style | Circuit per Deck | Angle of Throw | Actuator Type | Depth Behind Panel [z] | Index Stops | Number of Positions [Min] | Number of Positions [Max] | Actuator Length [x] | Contact Timing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 9.78 mm | 3 | 300 mA 500 mA | 125 V | Panel Mount | Brass | 28 V | 1 | Silver | Solder Lug | 3P4T | 30 ° | Flatted (6.35mm Dia) | 20.12 mm | Adjustable | 2 | 4 | 0.5 in | Shorting (MBB) |
 Electroswitch | 9.78 mm | 3 | 300 mA 500 mA | 125 V | Panel Mount | Brass | 28 V | 1 | Silver | Solder Lug | 3P4T | 30 ° | Flatted (6.35mm Dia) | 20.12 mm | Adjustable | 2 | 4 | 0.5 in | Non-Shorting (BBM) |
