TMB-E9 Series

Catalog

2.92(F)STR,EL,SOLDER

Part	Frequency - Max [Max]	Connector Type	Number of Ports	Connector Style [x]	Center Contact Material	Shield Termination	Fastening Type	Impedance	Contact Termination	Mounting Type	Housing Color	Body Material	Insertion Loss	Voltage Rating	Body Finish	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Features	Dielectric Material
Amphenol CDI TMB-E9FS-1S1	40 GHz	Female Socket Jack	1	2.92 mm	Beryllium Copper	Solder	Threaded	50 Ohms	Solder	Board Edge End Launch	Gold
Amphenol CDI TMB-E9FS-1S1	40 GHz	Female Socket Jack	1	2.92 mm	Beryllium Copper	Solder	Threaded	50 Ohms	Solder	Board Edge End Launch	Gold	Brass	0.6 dB	400 V	Gold	Gold	-65 ░C	165 °C	500

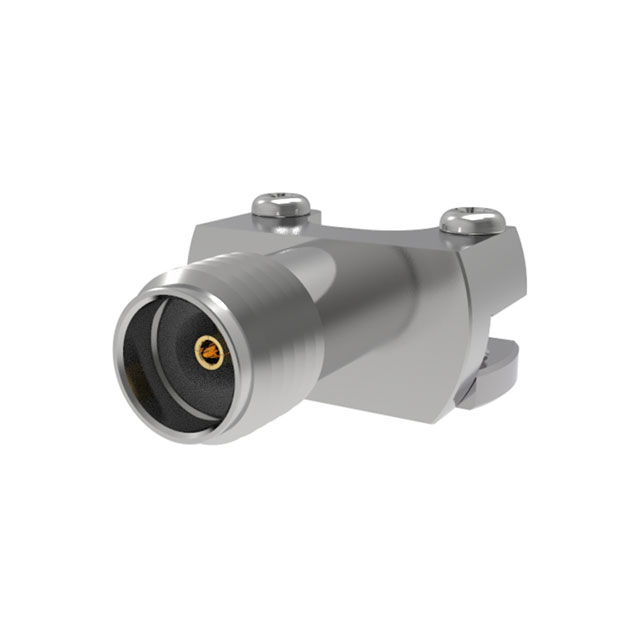

Amphenol CDI TMB-E9F2-1L1	40 GHz	Female Socket Jack	1	2.92 mm	Beryllium Copper	Screw	Threaded	50 Ohms	Compression	Board Edge End Launch	Silver									Field Replaceable For Hermetically Sealed Pin
Amphenol CDI TMB-E9FS-1ST	40 GHz	Female Socket Jack	1	2.92 mm	Beryllium Copper	Solder	Threaded	50 Ohms	Solder	Board Edge End Launch	Silver	Brass	0.38 dB	400 V	White Bronze		-55 C	85 °C	500		Polytetrafluoroethylene (PTFE)
Amphenol CDI TMB-E9FS-1ST	40 GHz	Female Socket Jack	1	2.92 mm	Beryllium Copper	Solder	Threaded	50 Ohms	Solder	Board Edge End Launch	Silver
Amphenol CDI TMB-E9F2-1L1	40 GHz	Female Socket Jack	1	2.92 mm	Beryllium Copper	Screw	Threaded	50 Ohms	Compression	Board Edge End Launch	Silver	Stainless Steel	0.2 dB	400 V		Gold	-65 ░C	165 °C	500	Field Replaceable For Hermetically Sealed Pin
