TXM-433 Series

Catalog

RF TX IC ASK/OOK 433MHZ 8SMD MOD

Part	Applications	Current - Transmitting	Data Rate (Max) [Max]	Package / Case	Power - Output [Min]	Power - Output [Max]	Frequency	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Modulation or Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Antenna Connector	Data Interface	Power - Output	Features

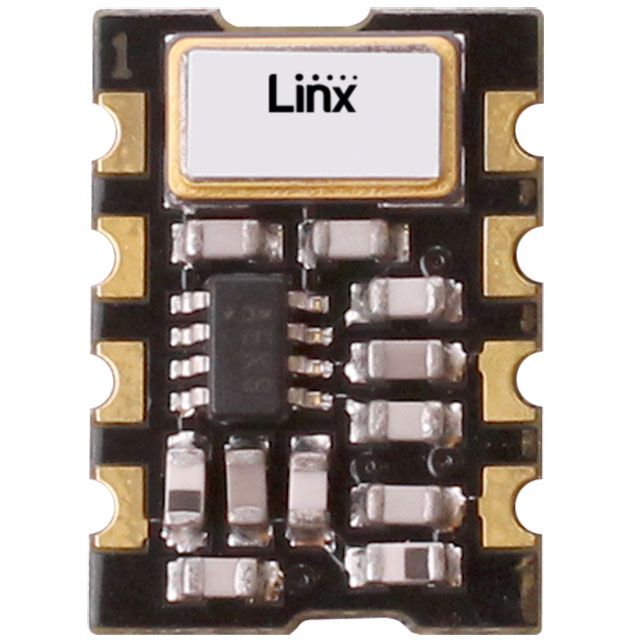

TE Connectivity AMP Connectors TXM-433-LR	Home/Industrial Automation Lighting Remote Control RKE Security	8.5 mA	10 kbps	8-SMD Module	-4 dBm	4 dBm	433 MHz	Surface Mount	85 °C	-40 C	ASK OOK	3.6 V	2.1 V	Module	Castellation	Serial

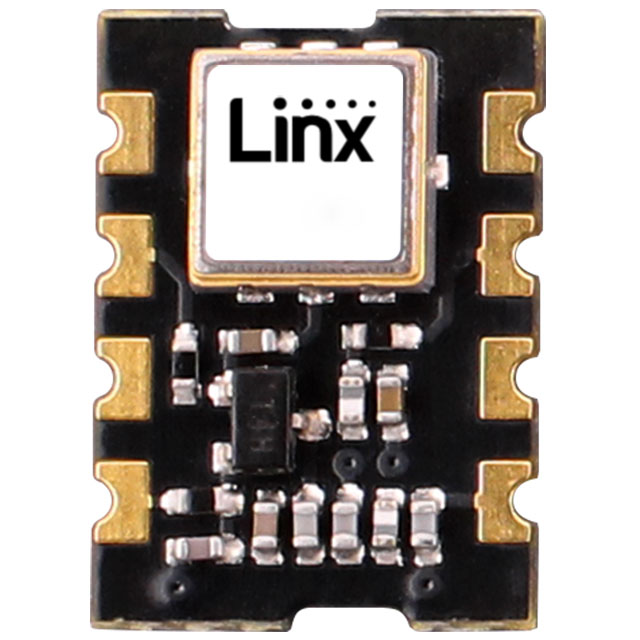

TE Connectivity AMP Connectors TXM-433-LC	Home/Industrial Automation Lighting Remote Control RKE Security	5.2 mA	5 kbps	8-SMD Module	-4 dBm	4 dBm	433 MHz	Surface Mount	70 °C	-30 ░C	ASK OOK	5.2 V	2.7 V	Module	Castellation	Serial

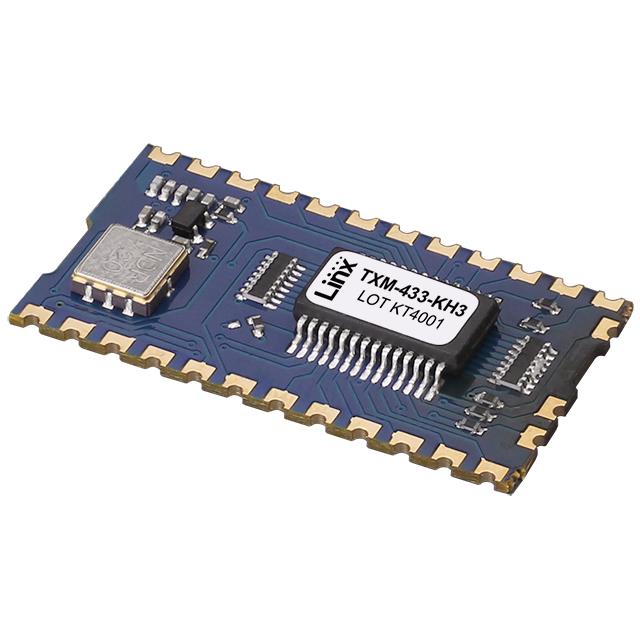

TE Connectivity AMP Connectors TXM-433-KH3	Home/Industrial Automation Lighting Remote Control RKE	2.7 mA		27-SMD Module			433 MHz	Surface Mount	70 °C	-30 ░C	ASK OOK	5.2 V	2.7 V	Module	Castellation	Parallel	4 dBm	Built-in Remote Control Encoder
