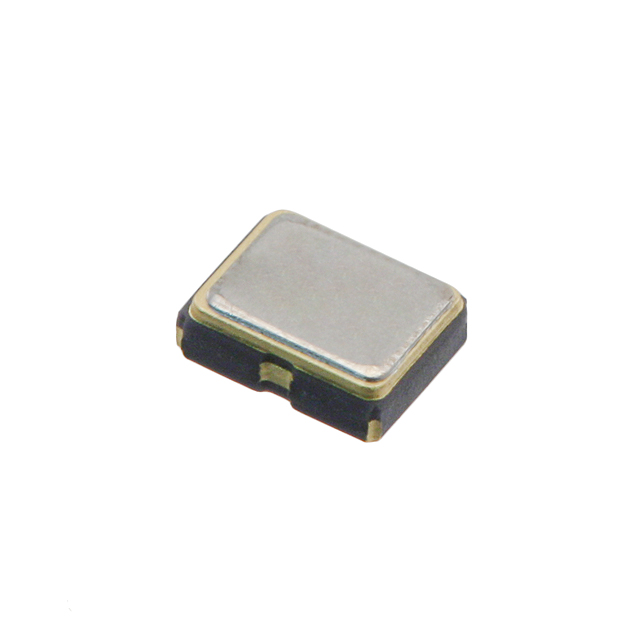

ECS2033 Series

Manufacturer: ECS Inc.

Catalog

STANDARD CLOCK OSCILLATORS ECS-2033,OSC XO 12.000MHZ HCMOS SMD,3.3V,+/-50PPM,-40+/-C - 85+/-C,7MA,SURFACE MOUNT,0.098" L X 0.079" W (2.50MM X 2.00MM),0.035" (0.90MM)

Part	Current - Supply (Disable) (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Frequency	Function	Mounting Type	Output	Frequency Stability	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Voltage - Supply	Base Resonator [custom]	Package / Case	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
ECS Inc. ECS-2033-120-BN	10 µA	0.035 in 0.039 in	0.9 mm 1 mm	2	2.5	4-SMD	12 MHz	Enable/Disable	Surface Mount	CMOS	50 ppm	2.5 mm	0.079 in	0.098 in	2 mm	XO (Standard)	3.3 V	Crystal	4-SMD No Lead	7 mA	85 °C	-40 C
ECS Inc. ECS-2033-200-BN	10 µA	0.035 in 0.039 in	0.9 mm 1 mm	2	2.5	4-SMD	20 MHz	Enable/Disable	Surface Mount	CMOS	50 ppm	2.5 mm	0.079 in	0.098 in	2 mm	XO (Standard)	3.3 V	Crystal	4-SMD No Lead	7 mA	85 °C	-40 C
ECS Inc. ECS-2033-040-BN	10 µA	0.035 in 0.039 in	0.9 mm 1 mm	2	2.5	4-SMD	4 MHz	Enable/Disable	Surface Mount	CMOS	50 ppm	2.5 mm	0.079 in	0.098 in	2 mm	XO (Standard)	3.3 V	Crystal	4-SMD No Lead	7 mA	85 °C	-40 C
ECS Inc. ECS-2033-320-BN	10 µA	0.035 in 0.039 in	0.9 mm 1 mm	2	2.5	4-SMD	32 MHz	Enable/Disable	Surface Mount	CMOS	50 ppm	2.5 mm	0.079 in	0.098 in	2 mm	XO (Standard)	3.3 V	Crystal	4-SMD No Lead	13 mA	85 °C	-40 C
ECS Inc. ECS-2033-320-AU	10 µA	0.035 in 0.039 in	0.9 mm 1 mm	2	2.5	4-SMD	32 MHz	Enable/Disable	Surface Mount	CMOS	100 ppm	2.5 mm	0.079 in	0.098 in	2 mm	XO (Standard)	3.3 V	Crystal	4-SMD No Lead	13 mA	125 °C	-55 C
