TSM076N Series

Catalog

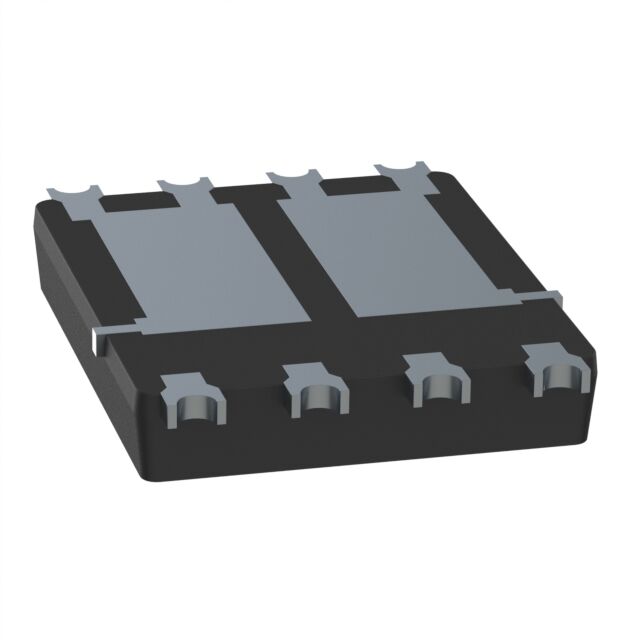

MOSFET 2N-CH 40V 14A 8PDFNU

Part	Supplier Device Package	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Rds On (Max) @ Id, Vgs	Package / Case	Technology	Configuration	Power - Max [Max]	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C
Taiwan Semiconductor Corporation TSM076NH04DCR RLG	8-PDFNU (5x6)	Surface Mount	175 °C	-55 °C	1217 pF	7.6 mOhm	8-PowerTDFN	MOSFET (Metal Oxide)	2 N-Channel (Dual)	55.6 W	3.6 V	19 nC	40 V	14 A 34 A
