PRPC023 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 46POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Type	Contact Finish Thickness - Mating	Number of Positions Loaded	Style	Number of Positions	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Shape	Material Flammability Rating	Insulation Color	Shrouding	Insulation Material	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Material	Fastening Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PRPC023DAAN-RC	Flash	Male Pin	Flash	All	Board to Board Cable	46	Through Hole	3.05 mm	0.12 in	Gold	Square	UL94 V-0	Black	Unshrouded	Polybutylene Terephthalate (PBT)	Solder	0.1 in	2.54 mm	2	Gold	-40 C	105 ░C	Header Breakaway	Brass	Push-Pull	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	0.23 in	5.84 mm	0.448 in	11.39 mm

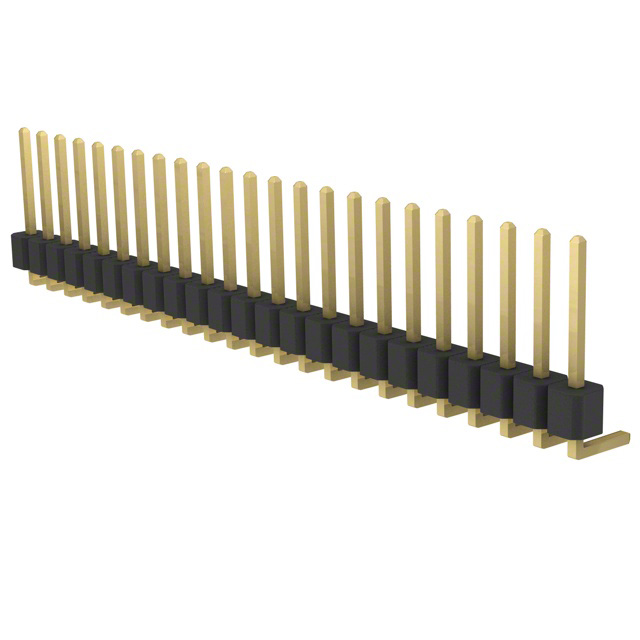

Sullins Connector Solutions PRPC023SGAN-M71RC	Flash	Male Pin	Flash	All	Board to Board Cable	23	Right Angle Through Hole	3.05 mm	0.12 in	Gold	Square	UL94 V-0	Black	Unshrouded	Polybutylene Terephthalate (PBT)	Solder				Gold	-40 C	105 ░C	Header Breakaway	Brass	Push-Pull	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	0.318 in	8.08 mm			1

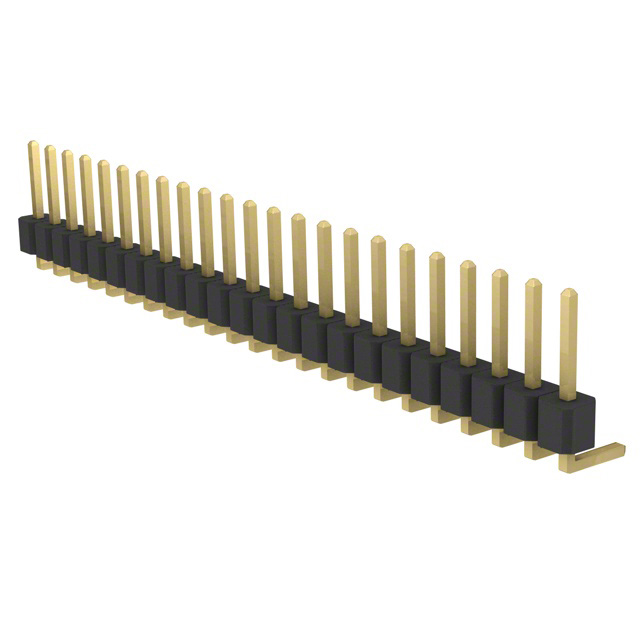

Sullins Connector Solutions PRPC023SBAN-M71RC	Flash	Male Pin	Flash	All	Board to Board Cable	23	Right Angle Through Hole	3.05 mm	0.12 in	Gold	Square	UL94 V-0	Black	Unshrouded	Polybutylene Terephthalate (PBT)	Solder				Gold	-40 C	105 ░C	Header Breakaway	Brass	Push-Pull	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	0.23 in	5.84 mm			1
Sullins Connector Solutions PRPC023DFAN-RC	Flash	Male Pin	Flash	All	Board to Board Cable	46	Through Hole	3.05 mm	0.12 in	Gold	Square	UL94 V-0	Black	Unshrouded	Polybutylene Terephthalate (PBT)	Solder	0.1 in	2.54 mm	2	Gold	-40 C	105 ░C	Header Breakaway	Brass	Push-Pull	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	0.318 in	8.08 mm				13.63 mm	0.537 in
Sullins Connector Solutions PRPC023SFAN-RC	Flash	Male Pin	Flash	All	Board to Board Cable	23	Through Hole	3.05 mm	0.12 in	Gold	Square	UL94 V-0	Black	Unshrouded	Polybutylene Terephthalate (PBT)	Solder				Gold	-40 C	105 ░C	Header Breakaway	Brass	Push-Pull	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	0.318 in	8.08 mm			1	13.63 mm	0.537 in

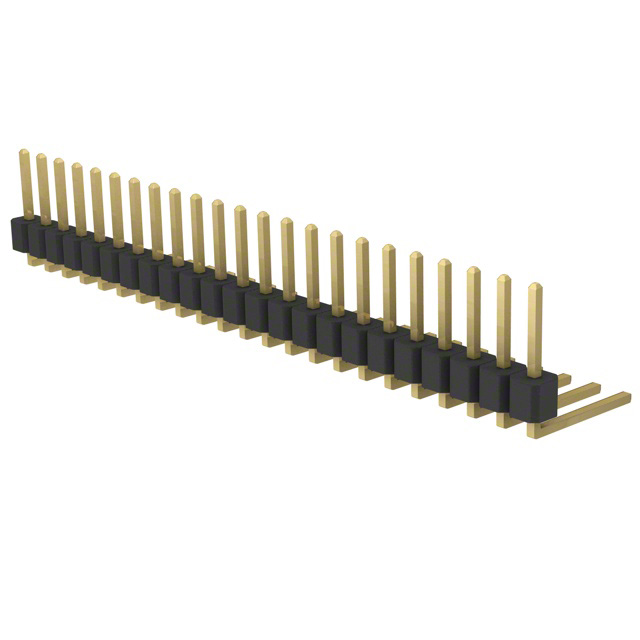

Sullins Connector Solutions PRPC023SBCN-M71RC	Flash	Male Pin	Flash	All	Board to Board Cable	23	Right Angle Through Hole	8.13 mm	0.32 in	Gold	Square	UL94 V-0	Black	Unshrouded	Polybutylene Terephthalate (PBT)	Solder				Gold	-40 C	105 ░C	Header Breakaway	Brass	Push-Pull	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	0.23 in	5.84 mm			1

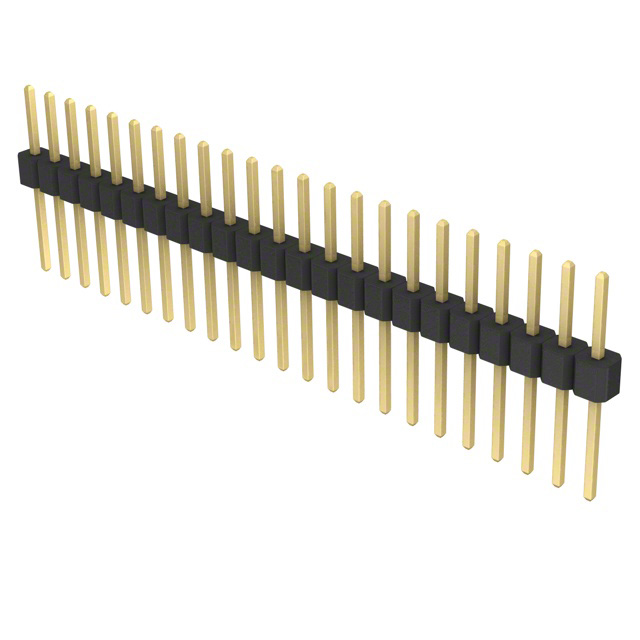

Sullins Connector Solutions PRPC023SACN-RC	Flash	Male Pin	Flash	All	Board to Board Cable	23	Through Hole	8.13 mm	0.32 in	Gold	Square	UL94 V-0	Black	Unshrouded	Polybutylene Terephthalate (PBT)	Solder				Gold	-40 C	105 ░C	Header Breakaway	Brass	Push-Pull	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	0.23 in	5.84 mm			1	16.47 mm	0.648 in
Sullins Connector Solutions PRPC023SAAN-RC	Flash	Male Pin	Flash	All	Board to Board Cable	23	Through Hole	3.05 mm	0.12 in	Gold	Square	UL94 V-0	Black	Unshrouded	Polybutylene Terephthalate (PBT)	Solder				Gold	-40 C	105 ░C	Header Breakaway	Brass	Push-Pull	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	0.23 in	5.84 mm	0.448 in	11.39 mm	1

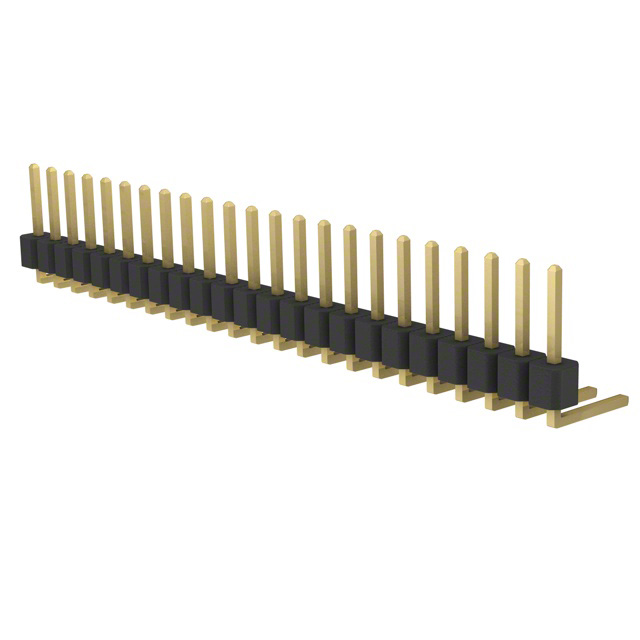

Sullins Connector Solutions PRPC023SBBN-M71RC	Flash	Male Pin	Flash	All	Board to Board Cable	23	Right Angle Through Hole	5.58 mm	0.22 in	Gold	Square	UL94 V-0	Black	Unshrouded	Polybutylene Terephthalate (PBT)	Solder				Gold	-40 C	105 ░C	Header Breakaway	Brass	Push-Pull	0.1 "	2.54 mm	3 A	0.098 "	2.5 mm	0.23 in	5.84 mm			1

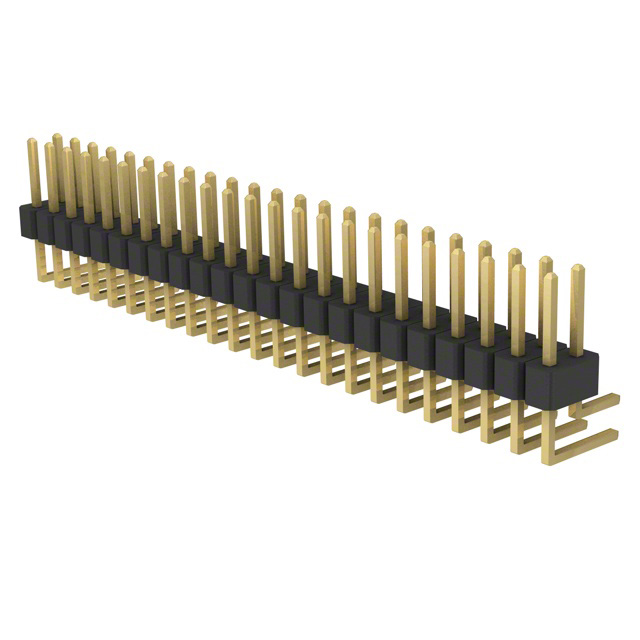

Sullins Connector Solutions PRPC023DBAN-M71RC	Flash	Male Pin	Flash	All	Board to Board Cable	46	Right Angle Through Hole	3.05 mm	0.12 in	Gold	Square	UL94 V-0	Black	Unshrouded	Polybutylene Terephthalate (PBT)	Solder	0.1 in	2.54 mm	2	Gold	-40 C	105 ░C	Header Breakaway	Brass	Push-Pull	0.1 "	2.54 mm	3 A	0.197 "	5 mm	0.23 in	5.84 mm
