0977008 Series

FUSE 500Vac 450Vdc 5x20 TL 8A

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

FUSE 500Vac 450Vdc 5x20 TL 8A

Part	Package / Case [y]	Package / Case [x]	Operating Temperature [Min]	Operating Temperature [Max]	Melting I²t	Mounting Type	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	DC Cold Resistance	Voltage Rating - DC	Fuse Type	Voltage Rating - AC	Current Rating (Amps)	Approval Agency	Breaking Capacity @ Rated Voltage	Response Time	Size / Dimension [z]	Size / Dimension [z]
Littelfuse/Commercial Vehicle Products 0977008.MXP	20 mm	5 mm	-55 °C	125 °C	233	Requires Holder	0.787 in	5.2 mm	20 mm	0.205 in	0.008 Ohms	450 V	Cartridge Ceramic	500 V	8 A	CE PSE SEMKO	100 A 200 A	Slow Blow
Littelfuse/Commercial Vehicle Products 0977008.MXEP	20 mm	5 mm	-55 °C	125 °C	233	Through Hole		5.8 mm		0.228 in	0.008 Ohms	450 V	Cartridge Ceramic	500 V	8 A	CE PSE SEMKO	100 A 200 A	Slow Blow	22.5 mm	0.886 "

Catalog

FUSE 500Vac 450Vdc 5x20 TL 8A

Key Features

• DC interrupting current

• Lead-free and RoHS compliant

Description

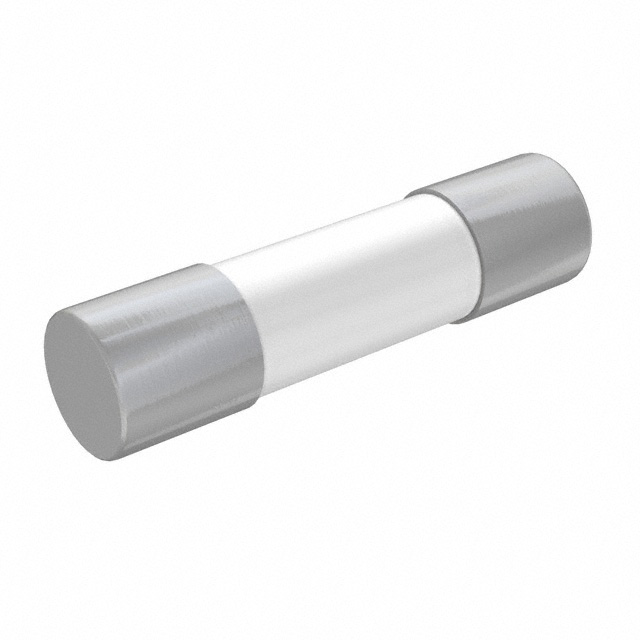

The 977 Series is a ceramic-base 5x20mm-size fuse series with a 500VAC/450VDC rating. It is designed for circuit protection in both high-power AC and power-efficient applications. With its DC and AC characteristics, the 977 Series is sutable for high energy or power efficient applications and 3-phase power supplies protection.
