325211 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRIP 4CIRC 0.325"
| Part | Operating Temperature | Mounting Type | Material Flammability Rating | Material - Insulation | Current Rating (Amps) | Bottom Termination | Number of Circuits | Voltage Rating | Number of Rows | Number of Wire Entries | Top Termination | Features | Terminal Block Type | Wire Gauge [Min] | Wire Gauge [Max] | Barrier Type | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

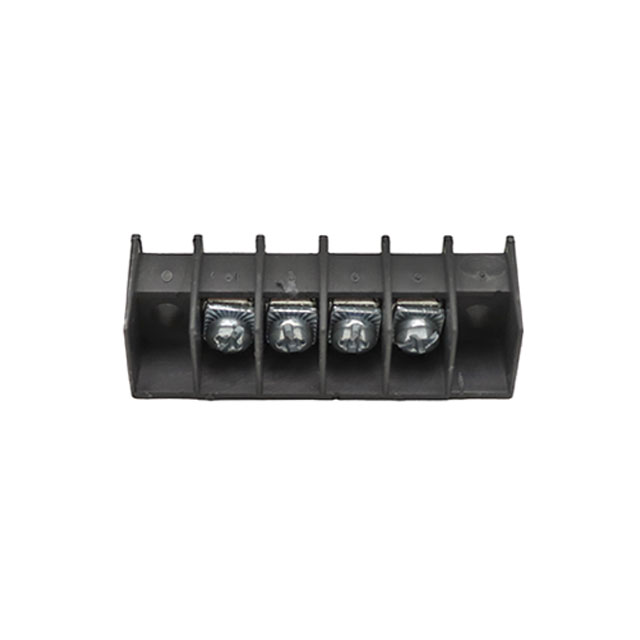

 Curtis Industries | 105 C | Chassis Panel Through Hole | UL94 V-0 | Polypropylene (PP) | 15 A | PC Pin | 4 | 300 VDC | 1 | 4 | Screws | Flange | Barrier Block | 14 AWG | 22 AWG | 3 Wall (Tri) | 0.325 in | 8.26 mm |
 Curtis Industries | 105 C | Chassis Panel Through Hole | UL94 V-0 | Polypropylene (PP) | 15 A | PC Pin | 19 | 300 VDC | 1 | 19 | Screws | Flange | Barrier Block | 14 AWG | 22 AWG | 3 Wall (Tri) | 0.325 in | 8.26 mm |

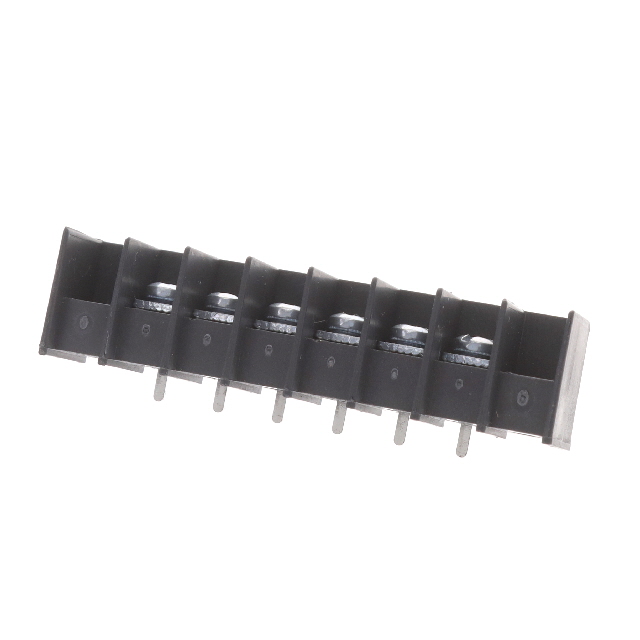

 Curtis Industries | 105 C | Chassis Panel Through Hole | UL94 V-0 | Polypropylene (PP) | 15 A | PC Pin | 6 | 300 VDC | 1 | 6 | Screws | Flange | Barrier Block | 14 AWG | 22 AWG | 3 Wall (Tri) | 0.325 in | 8.26 mm |
Curtis Industries | 105 C | Chassis Panel Through Hole | UL94 V-0 | Polypropylene (PP) | 15 A | PC Pin | 17 | 300 VDC | 1 | 17 | Screws | Flange | Barrier Block | 14 AWG | 22 AWG | 3 Wall (Tri) | 0.325 in | 8.26 mm |

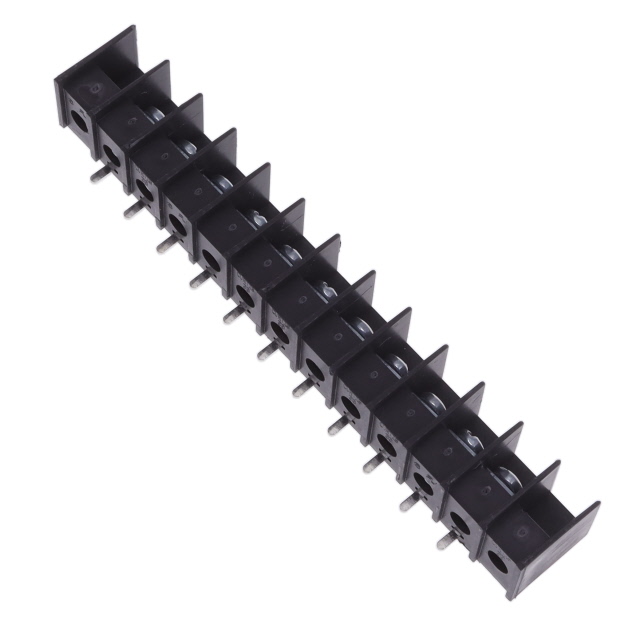

 Curtis Industries | 105 C | Chassis Panel Through Hole | UL94 V-0 | Polypropylene (PP) | 15 A | PC Pin | 11 | 300 VDC | 1 | 11 | Screws | Flange | Barrier Block | 14 AWG | 22 AWG | 3 Wall (Tri) | 0.325 in | 8.26 mm |
Curtis Industries | 105 C | Chassis Panel Through Hole | UL94 V-0 | Polypropylene (PP) | 15 A | PC Pin | 1 | 300 VDC | 1 | 1 | Screws | Flange | Barrier Block | 14 AWG | 22 AWG | 3 Wall (Tri) | ||
Curtis Industries | 105 C | Chassis Panel Through Hole | UL94 V-0 | Polypropylene (PP) | 15 A | PC Pin | 21 | 300 VDC | 1 | 21 | Screws | Flange | Barrier Block | 14 AWG | 22 AWG | 3 Wall (Tri) | 0.325 in | 8.26 mm |
Curtis Industries | 105 C | Chassis Panel Through Hole | UL94 V-0 | Polypropylene (PP) | 15 A | PC Pin | 15 | 300 VDC | 1 | 15 | Screws | Flange | Barrier Block | 14 AWG | 22 AWG | 3 Wall (Tri) | 0.325 in | 8.26 mm |

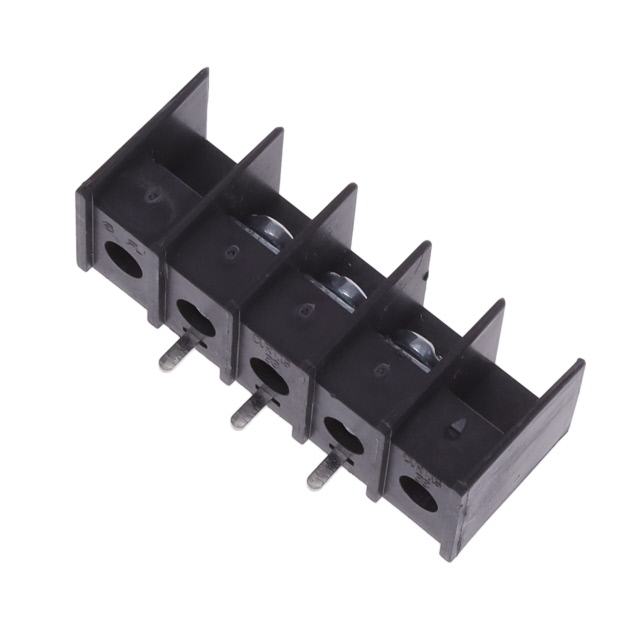

 Curtis Industries | 105 C | Chassis Panel Through Hole | UL94 V-0 | Polypropylene (PP) | 15 A | PC Pin | 3 | 300 VDC | 1 | 3 | Screws | Flange | Barrier Block | 14 AWG | 22 AWG | 3 Wall (Tri) | 0.325 in | 8.26 mm |

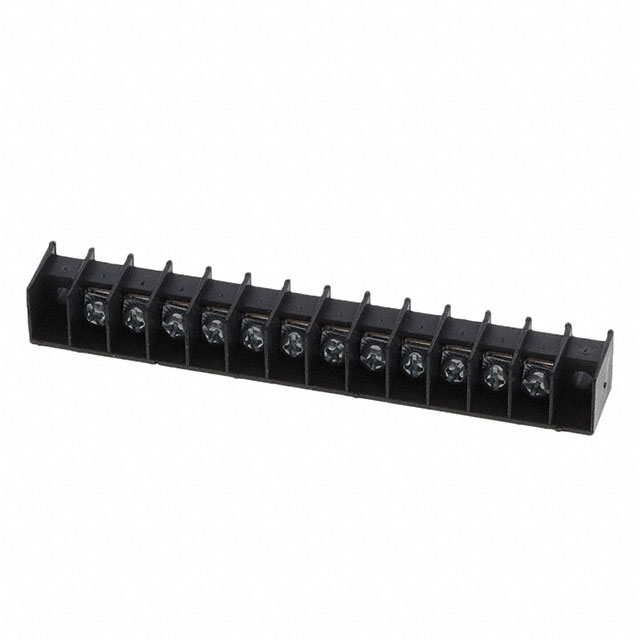

 Curtis Industries | 105 C | Chassis Panel Through Hole | UL94 V-0 | Polypropylene (PP) | 15 A | PC Pin | 12 | 300 VDC | 1 | 12 | Screws | Flange | Barrier Block | 14 AWG | 22 AWG | 3 Wall (Tri) | 0.325 in | 8.26 mm |
