PTSPL Series

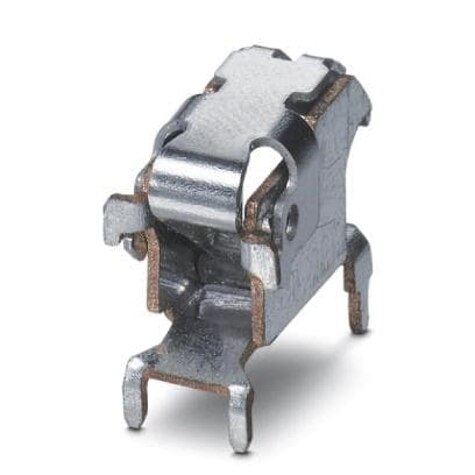

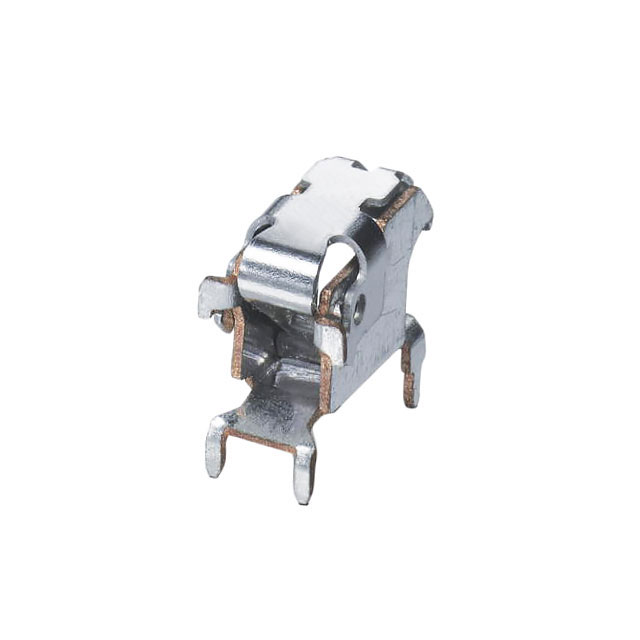

Fixed Terminal Blocks 41A, 1kV Spring Cage PTSPL-6/1-2x2 2.1
Manufacturer: Phoenix Contact
Catalog
Fixed Terminal Blocks 41A, 1kV Spring Cage PTSPL-6/1-2x2 2.1
Beta
⌘K
Fixed Terminal Blocks 41A, 1kV Spring Cage PTSPL-6/1-2x2 2.1
Fixed Terminal Blocks 41A, 1kV Spring Cage PTSPL-6/1-2x2 2.1
Fixed Terminal Blocks 41A, 1kV Spring Cage PTSPL-6/1-2x2 2.1
| Part | Number of Levels | Current | Mounting Type | Voltage | Positions Per Level | Mating Orientation | Wire Termination | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 1 | 41 A | Panel Mount | 400 V | 1 | Horizontal with Board | Leg Spring Push-In Spring | 14 AWG | 10 AWG |
 Phoenix Contact | 1 | 41 A | Through Hole | 1 | Horizontal with Board | Screwless - Spring Cage Tension Clamp | 14 AWG | 10 AWG |
