T3DS Series

Catalog

200MHZ, 1GS/S PER CH, 2GS/S INTERLEAVED, 2CH, 70MPTS/CH, 140MPTS INTERLEAVED DSO, 8" COLOR DISPLAY

Part	Includes	Function	Interface	Channels	Display Type	Input Impedance	Sampling Rate (Per Second)	Rise Time (Typ)	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Type	Voltage - Input (Max) [Max]	Bandwidth	Function [y]	Accessory Type	For Use With/Related Products	Voltage - Input (Max)
Teledyne LeCroy T3DSO2202	Power Cord USB Adapter/Cable	Record Trend	RS232 USB	2 Analog	LCD - Color	1 M	2G	1.7 ns	240 VAC	100 VAC	140 Mpts	Bench Digital	240 V	200 MHz
Teledyne LeCroy T3DSO2302	Power Cord USB Adapter/Cable	Record Trend	RS232 USB	2 Analog	LCD - Color	1 M	2G		240 VAC	100 VAC	140 Mpts	Bench Digital	240 V	300 MHz
Teledyne LeCroy T3DSO2104A	Power Cord USB Adapter/Cable		RS232 USB	4 Analog	LCD - Color	1 M	2G	1 ns	240 VAC	100 VAC	140 Mpts	Bench Digital	240 V	100 MHz	0.5 mm

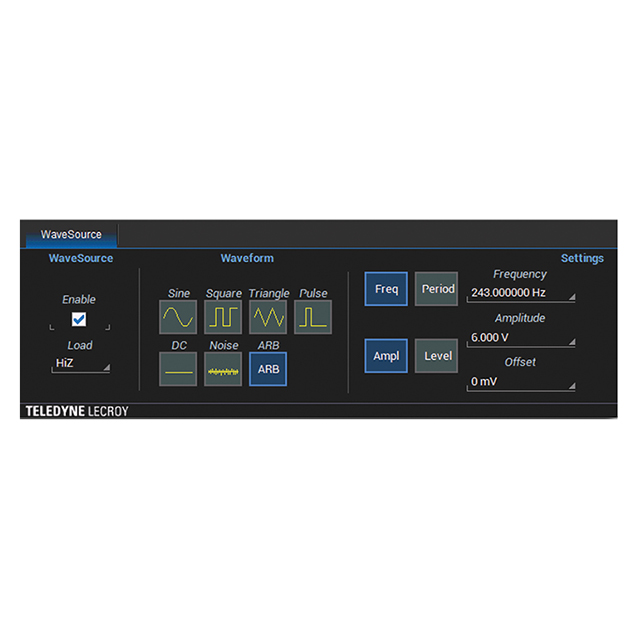

Teledyne LeCroy T3DSO1000-FG												Oscilloscope				Software	Oscilloscopes: T3DSO1000

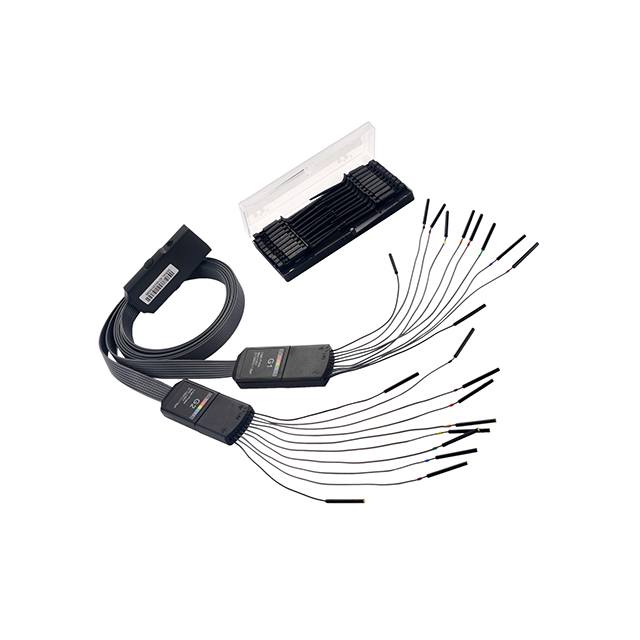

Teledyne LeCroy T3DSO1000-LS												General Purpose
Teledyne LeCroy T3DSO2000A-MSO
Teledyne LeCroy T3DSO1000A-FG												Oscilloscope				Software	T3DSO1000A
Teledyne LeCroy T3DSO2000A-CANFD
Teledyne LeCroy T3DSO1104	Power Cord USB Adapter/Cable	Record Trend	RS232 USB	4 Analog	LCD - Color	1 M	1G	3.5 ns	240 VAC	100 VAC	28 Mpts	Bench Digital		100 MHz				240 V
Teledyne LeCroy T3DSO1000-MSO												Oscilloscope				Software	Oscilloscopes: T3DSO1000
