PPCFGG Series

Catalog

CIRCULAR CONNECTOR, PUSH PULL Y SERIES, STRAIGHT PLUG, 16 CONTACTS, SOLDER PIN, PUSH-PULL

Part	Backshell Material, Plating	Shell Material	Connector Type	Orientation [custom]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Shielding	Color	Contact Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Positions	Insert Material	Shell Finish	Ingress Protection	Primary Material	Cable Opening [Max]	Cable Opening [Min]	Current Rating (Amps)	Cable Opening [Min]	Cable Opening [Max]
BULGIN LIMITED PPCFGG1K16CLAD	Brass Chrome	Brass	Plug Male Pins	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	0.076 µm	3 µin	Free Hanging (In-Line)	16	Polyphenylene Sulfide (PPS)	Chrome	IP66 - Dust Tight Water Resistant	Metal
BULGIN LIMITED PPCFGG2B18CLAD	Brass Chrome	Brass	Plug Male Pins	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	0.076 µm	3 µin	Free Hanging (In-Line)	18	Polyphenylene Sulfide (PPS)	Chrome	IP50 - Dust Protected	Metal	0.315 in 8 mm	0.287 in 7.3 mm	5.5 Amps
BULGIN LIMITED PPCFGG2B05CLAD	Brass Chrome	Brass	Plug Male Pins	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	0.076 µm	3 µin	Free Hanging (In-Line)	5	Polyphenylene Sulfide (PPS)	Chrome	IP50 - Dust Protected	Metal	0.197 in	0.169 "	14 A	4.3 mm	5 mm

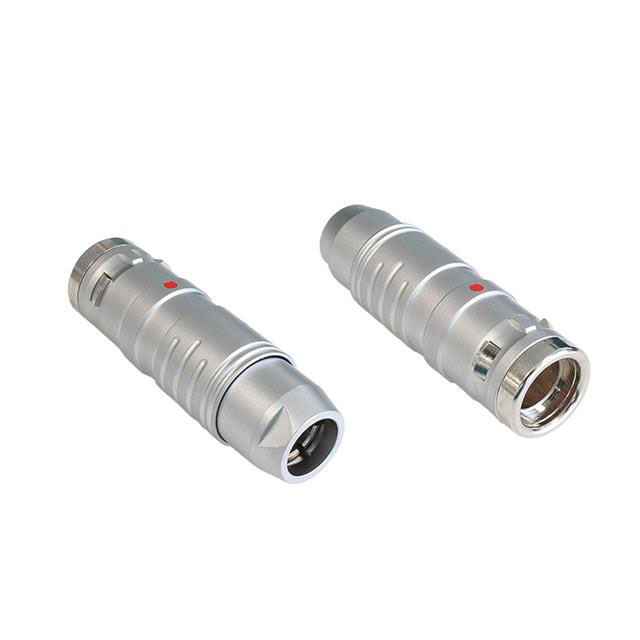

BULGIN LIMITED PPCFGG2K14CLAD	Brass Chrome	Brass	Plug Male Pins	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	0.076 µm	3 µin	Free Hanging (In-Line)	14	Polyphenylene Sulfide (PPS)	Chrome	IP66 - Dust Tight Water Resistant	Metal	0.276 "	0.26 "	6.5 A	6.6 mm	7 mm
BULGIN LIMITED PPCFGG2K12CLAD	Brass Chrome	Brass	Plug Male Pins	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	0.076 µm	3 µin	Free Hanging (In-Line)	12	Polyphenylene Sulfide (PPS)	Chrome	IP66 - Dust Tight Water Resistant	Metal	0.236 in	0.22 in	7 A	5.6 mm	6 mm
BULGIN LIMITED PPCFGG2B02CLAD	Brass Chrome	Brass	Plug Male Pins	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	0.076 µm	3 µin	Free Hanging (In-Line)	2	Polyphenylene Sulfide (PPS)	Chrome	IP50 - Dust Protected	Metal	0.197 in	0.169 "	30 A	4.3 mm	5 mm
BULGIN LIMITED PPCFGG1B03CLAD	Brass Chrome	Brass	Plug Male Pins	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	0.076 µm	3 µin	Free Hanging (In-Line)		Polyphenylene Sulfide (PPS)	Chrome	IP50 - Dust Protected	Metal	0.197 in	0.169 "	12 Amps	4.3 mm	5 mm
BULGIN LIMITED PPCFGG3K05CLAD	Brass Chrome	Brass	Plug Male Pins	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	0.076 µm	3 µin	Free Hanging (In-Line)	5	Polyphenylene Sulfide (PPS)	Chrome	IP66 - Dust Tight Water Resistant	Metal	0.276 "	0.26 "	19 A	6.6 mm	7 mm
BULGIN LIMITED PPCFGG1B06CLAD	Brass Chrome	Brass	Plug Male Pins	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	0.076 µm	3 µin	Free Hanging (In-Line)	6	Polyphenylene Sulfide (PPS)	Chrome	IP50 - Dust Protected	Metal	0.197 in	0.169 "	7 A	4.3 mm	5 mm

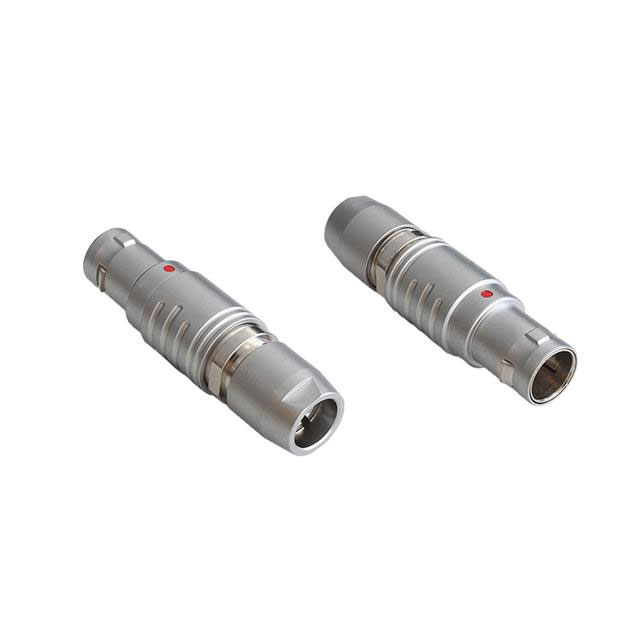

BULGIN LIMITED PPCFGG1B04CLAD	Brass Chrome	Brass	Plug Male Pins	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	0.076 µm	3 µin	Free Hanging (In-Line)	4	Polyphenylene Sulfide (PPS)	Chrome	IP50 - Dust Protected	Metal	0.197 in	0.169 "	10 A	4.3 mm	5 mm
