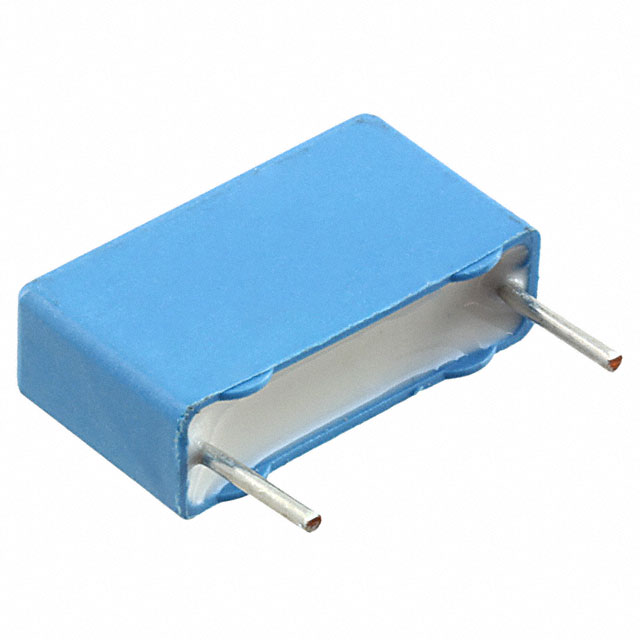

PHE448 Series

Manufacturer: KEMET

Catalog

FILM CAPACITORS 1600V 3300PF 5% LS=15MM

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Capacitance	Voltage Rating - DC	Voltage Rating - DC	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Dielectric Material	Lead Spacing	Lead Spacing	Tolerance	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET PHE448RB4330JR06	0.492 in	12.5 mm	Radial	-55 C	105 ░C	650 V	0.0033 µF	1.6 kV	1600 V	PC Pins	18 mm	0.256 "	0.709 in	6.5 mm	Through Hole	Polypropylene (PP)	15 mm	0.591 in	5 %	General Purpose
KEMET PHE448SB4270JR06
KEMET PHE448SB4150JR06	0.492 in	12.5 mm	Radial	-55 C	105 ░C	700 V	1500 pF	2 kV	2 kVDC	PC Pins	18 mm	0.256 "	0.709 in	6.5 mm	Through Hole	Polypropylene (PP)	15 mm	0.591 in	5 %	General Purpose

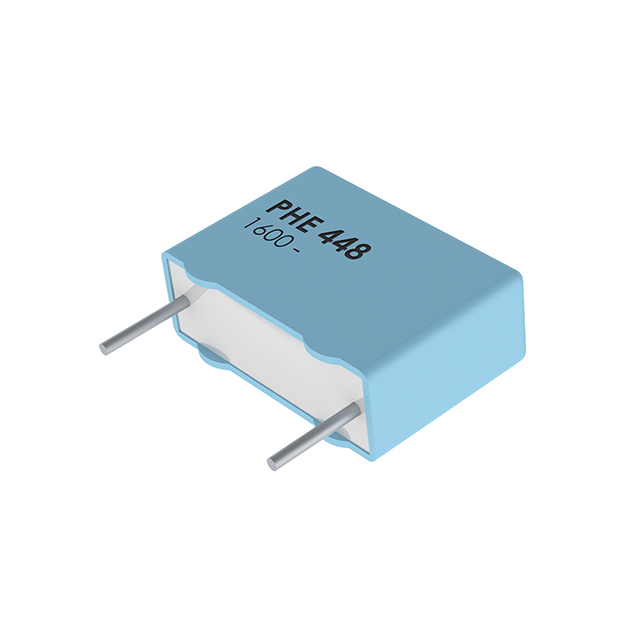

KEMET PHE448RB4470JR06	0.492 in	12.5 mm	Radial	-55 C	105 ░C	650 V	0.0047 µF	1.6 kV	1600 V	PC Pins	18 mm	0.256 "	0.709 in	6.5 mm	Through Hole	Polypropylene (PP)	15 mm	0.591 in	5 %	DV/DT High Frequency High Pulse Switching
KEMET PHE448SB3270JR06	10.5 mm		Radial	-55 C	105 ░C	700 V	270 pF	2 kV	2 kVDC	PC Pins	18 mm	0.217 in	0.709 in	5.5 mm	Through Hole	Polypropylene (PP)	15 mm	0.591 in	5 %	DV/DT High Frequency High Pulse Switching	0.413 "
KEMET PHE448SB3220JR06	10.5 mm		Radial	-55 C	105 ░C	700 V	220 pF	2 kV	2 kVDC	PC Pins	18 mm	0.217 in	0.709 in	5.5 mm	Through Hole	Polypropylene (PP)	15 mm	0.591 in	5 %	General Purpose	0.413 "
KEMET PHE448SB4220JR06			Radial	-55 C	105 ░C	700 V	2200 pF	2 kV	2 kVDC	PC Pins	18 mm	0.335 in	0.709 in	8.5 mm	Through Hole	Polypropylene (PP)	15 mm	0.591 in	5 %	DV/DT High Frequency High Pulse Switching		16 mm	0.63 in
KEMET PHE448SB3470JR06	10.5 mm		Radial	-55 C	105 ░C	700 V	470 pF	2 kV	2 kVDC	PC Pins	18 mm	0.217 in	0.709 in	5.5 mm	Through Hole	Polypropylene (PP)	15 mm	0.591 in	5 %	General Purpose	0.413 "
KEMET PHE448RB5100JR06			Radial	-55 C	105 ░C	650 V	10000 pF	1.6 kV	1600 V	PC Pins	18 mm	0.335 in	0.709 in	8.5 mm	Through Hole	Polypropylene (PP)	15 mm	0.591 in	5 %	DV/DT High Frequency High Pulse Switching		16 mm	0.63 in
