3498C Series

Catalog

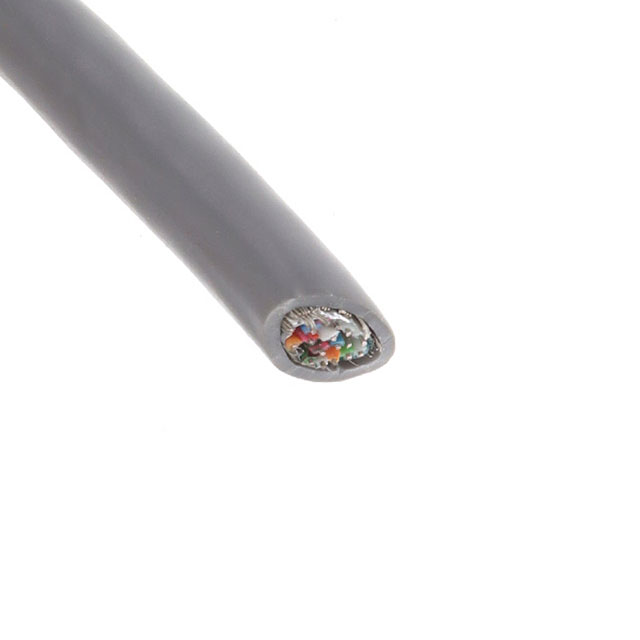

3498C SLATE 500 FT ROHS COMPLIANT: YES

Part	Shield Material	Wire Gauge	Jacket Color	Features	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Length [x]	Length [x]	Voltage	Shield Type	Conductor Material	Usage	Shield Coverage	Length	Length
ALPHA WIRE 3498C SL002	Aluminum Copper Tinned	28 AWG	Slate	Drain Wire	Multi-Pair	36 AWG	7	0.889 mm	0.035 in	Polypropylene (PP)	8.28 mm	0.326 in	Poly-Vinyl Chloride (PVC)	-20 C	80 C	16	500 '	152.4 m	300 V	Braid Foil	Copper Tinned	Communication Control	65 % 100 %
ALPHA WIRE 3498C SL001	Aluminum Copper Tinned	28 AWG	Slate	Drain Wire	Multi-Pair	36 AWG	7	0.889 mm	0.035 in	Polypropylene (PP)	8.28 mm	0.326 in	Poly-Vinyl Chloride (PVC)	-20 C	80 C	16			300 V	Braid Foil	Copper Tinned	Communication Control	65 % 100 %	1000 ft	304.8 m
ALPHA WIRE 3498C SL005	Aluminum Copper Tinned	28 AWG	Slate	Drain Wire	Multi-Pair	36 AWG	7	0.889 mm	0.035 in	Polypropylene (PP)	8.28 mm	0.326 in	Poly-Vinyl Chloride (PVC)	-20 C	80 C	16	100 ft	30.5 m	300 V	Braid Foil	Copper Tinned	Communication Control	65 % 100 %
