D38999/24JD Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT FMALE 19POS GOLD CRIMP

Part	Shell Size, MIL	Contact Finish - Mating	Grade	Qualification	Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Orientation	Number of Positions	Mounting Type	Applications	Shell Material	Primary Material	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Termination	Ingress Protection	Shell Finish	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Insert Material	Mounting Feature	Voltage Rating	Voltage Rating	Contact Type	Housing Color	Type	Note	Contact Shape	Contact Size	Current Rating (Amps)	Shell Size - Insert
TE Connectivity AMP Connectors D38999/24JD19SN	D	Gold	Military	MIL-DTL-38999 Series III	Olive Drab	Receptacle Female Sockets	-65 ░C	175 °C	Shielded	N (Normal)	19	Panel Mount	Aerospace Military	Composite	Composite	Copper Alloy	50 µin	1.27 µm	Threaded	Crimp	Environment Resistant	Olive Drab Cadmium	15	19	Thermoplastic	Bulkhead - Front Side Nut	600 VAC	850 VDC
TE Connectivity AMP Connectors D38999/24JD35AN	D		Military	MIL-DTL-38999 Series III		Receptacle Housing	-65 ░C	175 °C	Shielded	N (Normal)	37	Panel Mount		Composite	Composite				Threaded		Environment Resistant	Chromate over Cadmium	15	35	Plastic	Bulkhead - Front Side Nut			Crimp	Olive Drab	For Male Pins	Contacts Not Included	Circular	22D

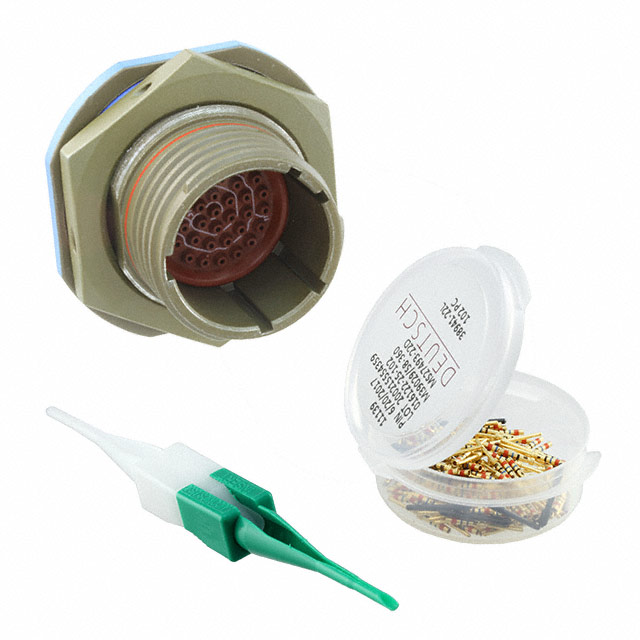

TE Connectivity AMP Connectors D38999/24JD35PN	D	Gold	Military	MIL-DTL-38999 Series III	Olive Drab	Receptacle Male Pins	-65 ░C	175 °C		N (Normal)	37	Panel Mount	Aerospace Military	Composite	Composite	Copper Alloy	50 µin	1.27 µm	Threaded	Crimp	Environment Resistant	Olive Drab Cadmium	15	35	Thermoplastic	Bulkhead - Front Side Nut	400 VAC 550 VDC
TE Connectivity AMP Connectors D38999/24JD35PB	D	Gold	Military	MIL-DTL-38999 Series III	Olive Drab	Receptacle Male Pins	-65 ░C	175 °C	Shielded	B	37	Panel Mount	Aerospace Military	Composite	Composite	Copper Alloy	50 µin	1.27 µm	Threaded	Crimp	Environment Resistant	Olive Drab Cadmium	15	35	Thermoplastic	Bulkhead - Front Side Nut	400 VAC 550 VDC
TE Connectivity AMP Connectors D38999/24JD35HC	D	Gold	Military	MIL-DTL-38999 Series III	Olive Drab	Receptacle Male Pins	-65 ░C	175 °C	Shielded	C	37	Panel Mount	Aerospace Military	Composite	Composite	Copper Alloy	50 µin	1.27 µm	Threaded	Crimp	Environment Resistant	Olive Drab Cadmium	15	35	Thermoplastic	Bulkhead - Front Side Nut	400 VAC 550 VDC
TE Connectivity AMP Connectors D38999/24JD18SN	D	Gold	Military	MIL-DTL-38999 Series III	Olive Drab	Receptacle Female Sockets	-65 ░C	175 °C	Shielded	N (Normal)	18	Panel Mount	Aerospace Military	Composite	Composite	Copper Alloy	50 µin	1.27 µm	Threaded	Crimp	Environment Resistant	Olive Drab Cadmium	15	18	Thermoplastic	Bulkhead - Front Side Nut	600 VAC	850 VDC
TE Connectivity AMP Connectors D38999/24JD35HA	D	Gold	Military	MIL-DTL-38999 Series III	Olive Drab	Receptacle Male Pins	-65 ░C	175 °C	Shielded	A	37	Panel Mount	Aerospace Military	Composite	Composite	Copper Alloy	50 µin	1.27 µm	Threaded	Crimp	Environment Resistant	Olive Drab Cadmium	15	35	Thermoplastic	Bulkhead - Front Side Nut	400 VAC 550 VDC
TE Connectivity AMP Connectors D38999/24JD18SA		Gold	Military	MIL-DTL-38999 Series III	Olive Drab	Receptacle Female Sockets	-65 ░C	175 °C	Shielded	A	18	Panel Mount	Aerospace Military	Composite	Composite	Copper Alloy	50 µin	1.27 µm	Threaded	Crimp	Environment Resistant	Olive Drab Cadmium	15	18	Thermoplastic	Bulkhead - Front Side Nut	600 VAC	850 VDC							7.5 A
TE Connectivity AMP Connectors D38999/24JD05PN	D	Gold	Military	MIL-DTL-38999 Series III	Olive Drab	Receptacle Male Pins	-65 ░C	175 °C	Shielded	N (Normal)	5	Panel Mount	Aerospace Military	Composite	Composite	Copper Alloy	50 µin	1.27 µm	Threaded	Crimp	Environment Resistant	Olive Drab Cadmium			Thermoplastic	Bulkhead - Front Side Nut	750 Vrms 1050 VDC									5 15
TE Connectivity AMP Connectors D38999/24JD97PN	D	Gold	Military	MIL-DTL-38999 Series III	Olive Drab	Receptacle Male Pins	-65 ░C	175 °C	Shielded	N (Normal)	12	Panel Mount	Aerospace Military	Composite	Composite	Copper Alloy	50 µin	1.27 µm	Threaded	Crimp	Environment Resistant	Olive Drab Cadmium	15	97	Thermoplastic	Bulkhead - Front Side Nut	600 VAC	850 VDC
