FZ800 Series

Manufacturer: INFINEON

Catalog

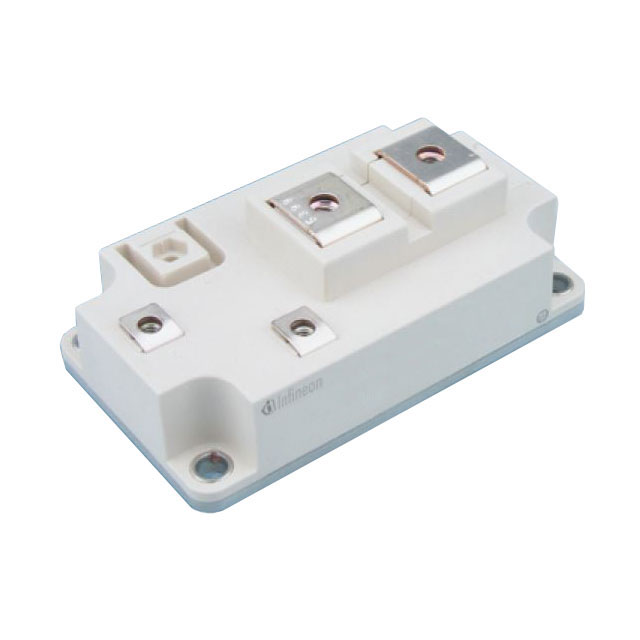

IGBT MODULE 3300V 1A 9600W

Part	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Input Capacitance (Cies) @ Vce	Input	Vce(on) (Max) @ Vge, Ic	Power - Max [Max]	Mounting Type	Configuration	Package / Case	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package
INFINEON FZ800R33KF2CB3S2NDSA1	1 A	3300 V	100 nF	Standard	4.25 V	9.6 kW	Chassis Mount	Half Bridge	Module	5 mA	125 °C	-40 C
INFINEON FZ800R33KF2CNOSA2	1 A	3300 V	100 nF	Standard	4.25 V	9.6 kW	Chassis Mount	Half Bridge	Module	5 mA	125 °C	-40 C
INFINEON FZ800R33KF2CS1NDSA1	1 A	3300 V	100 nF	Standard	4.25 V	9.6 kW	Chassis Mount	Half Bridge	Module	5 mA	125 °C	-40 C
INFINEON FZ800R33KL2CNOSA1	1500 A	3300 V	97 nF	Standard	3.65 V	9800 W	Chassis Mount		Module	5 mA	125 °C	-40 C	Module
INFINEON FZ800R33KF2CNOSA1	1300 A	3300 V	100 nF	Standard	4.25 V	9.6 kW	Chassis Mount	Half Bridge	Module	5 mA	125 °C	-40 C	Module
