GMKDSN Series

Catalog

FIXED TERMINAL BLOCKS GMKDSN 1.5/ 6-7.62

Part	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Screw Thread	Housing Material	Color	Mounting Type	Pitch	Pitch	Wire Termination	Mating Orientation	Positions Per Level	Current	Wire Gauge [Max]	Wire Gauge [Min]	Voltage	Number of Levels	Features

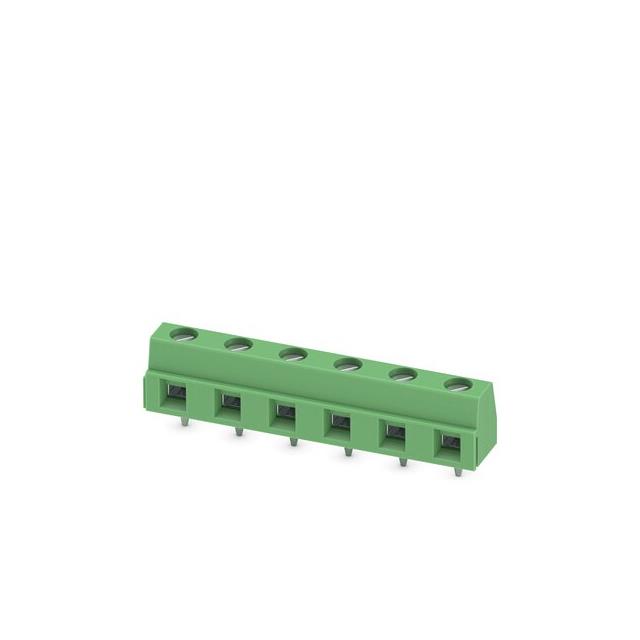

Phoenix Contact 1707069	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	Polyamide (PA) Nylon	Green	Through Hole	0.3 in	7.62 mm	Screw - Rising Cage Clamp	Horizontal with Board	6	10 A	30 AWG	14 AWG	300 VDC	1	Interlocking (Side)

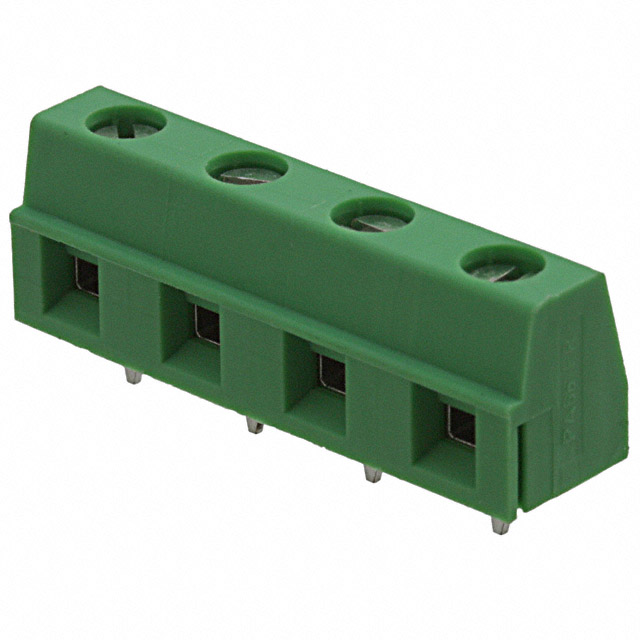

Phoenix Contact 1707043	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	Polyamide (PA) Nylon	Green	Through Hole	0.3 in	7.62 mm	Screw - Rising Cage Clamp	Horizontal with Board	4	10 A	30 AWG	14 AWG	300 VDC	1	Interlocking (Side)
