009158 Series

Catalog

CONN STACKING 20POS SMD GOLD

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Height Above Board [z]	Height Above Board [z]	Features	Pitch	Pitch	Mated Stacking Heights [Max]	Mated Stacking Heights [Min]	Contact Finish	Mounting Type
KYOCERA AVX 009158020020001	20	0.25 Ám	10 Áin	2	0.071 in	1.8 mm	Board Guide	1 mm	0.039 in	2.1 mm	1.9 mm	Gold	Surface Mount

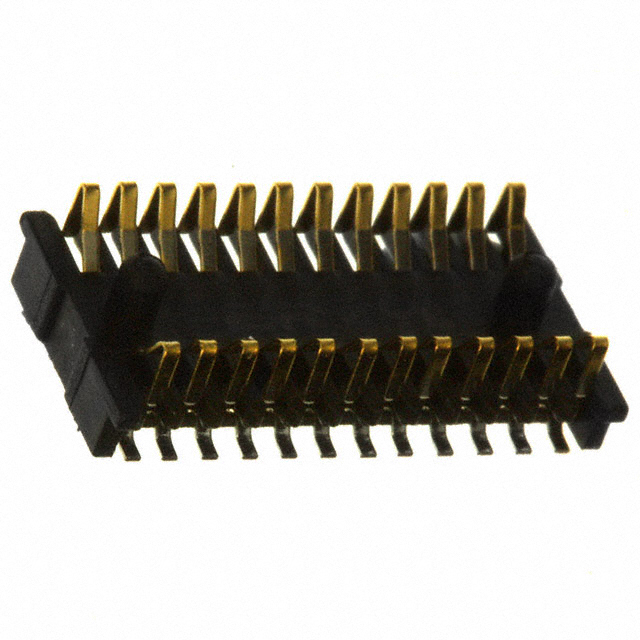

KYOCERA AVX 009158024025001	24	0.25 Ám	10 Áin	2	0.071 in	1.8 mm	Board Guide	1 mm	0.039 in	2.7 mm	2.1 mm	Gold	Surface Mount
KYOCERA AVX 009158028020001	28	0.25 Ám	10 Áin	2	0.071 in	1.8 mm	Board Guide	1 mm	0.039 in	2.1 mm	1.9 mm	Gold	Surface Mount

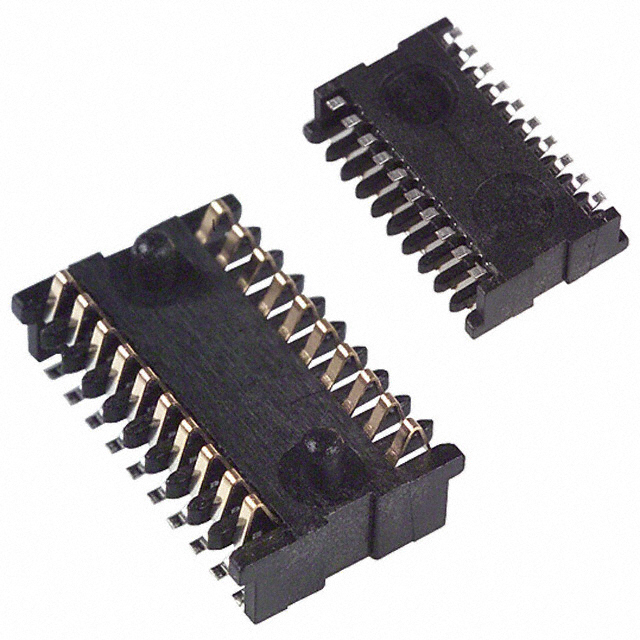

KYOCERA AVX 009158020030001	20	0.25 Ám	10 Áin	2	0.106 in	2.7 mm	Board Guide	1 mm	0.039 in	3.3 mm	2.8 mm	Gold	Surface Mount
KYOCERA AVX 009158028025062	28	0.25 Ám	10 Áin	2	0.071 in	1.8 mm		1 mm	0.039 in	2.7 mm	2.1 mm	Gold	Surface Mount

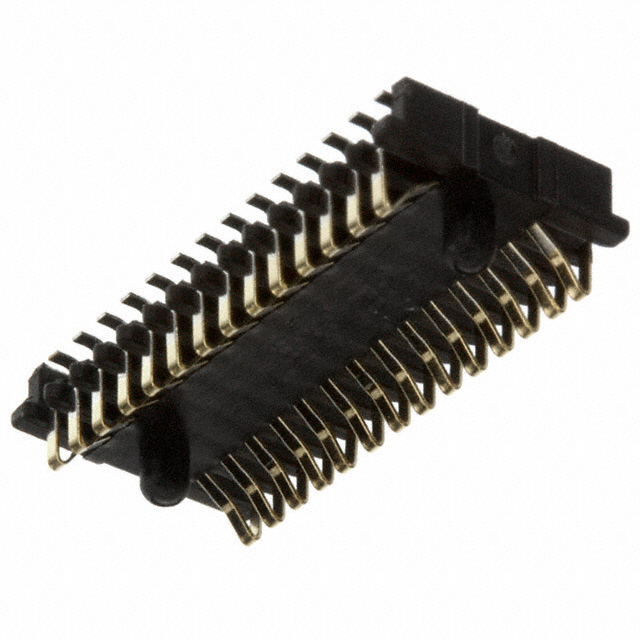

KYOCERA AVX 009158028025001	28	0.25 Ám	10 Áin	2	0.071 in	1.8 mm	Board Guide	1 mm	0.039 in	2.7 mm	2.1 mm	Gold	Surface Mount
KYOCERA AVX 009158016025062	16	0.25 Ám	10 Áin	2	0.071 in	1.8 mm		1 mm	0.039 in	2.7 mm	2.1 mm	Gold	Surface Mount
KYOCERA AVX 009158020020062	20	0.25 Ám	10 Áin	2	0.071 in	1.8 mm		1 mm	0.039 in	2.1 mm	1.9 mm	Gold	Surface Mount
KYOCERA AVX 009158016030061	16	0.25 Ám	10 Áin	2	0.106 in	2.7 mm	Board Guide	1 mm	0.039 in	3.3 mm	2.8 mm	Gold	Surface Mount

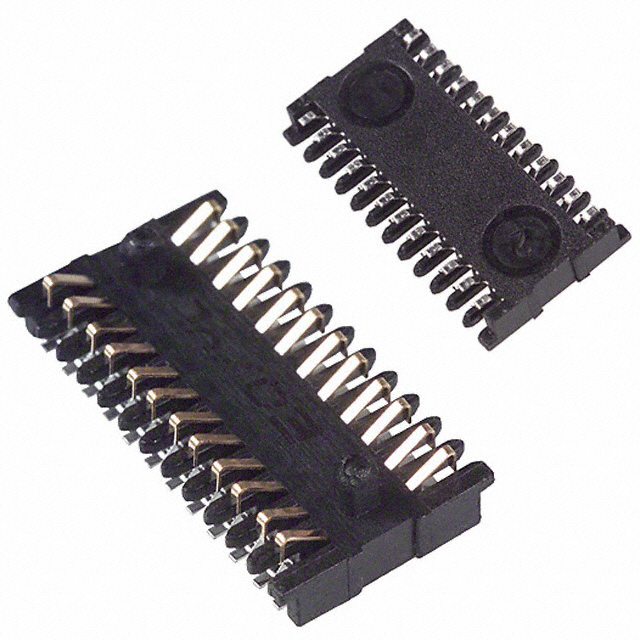

KYOCERA AVX 009158024020001	24	0.25 Ám	10 Áin	2	0.071 in	1.8 mm	Board Guide	1 mm	0.039 in	2.1 mm	1.9 mm	Gold	Surface Mount
