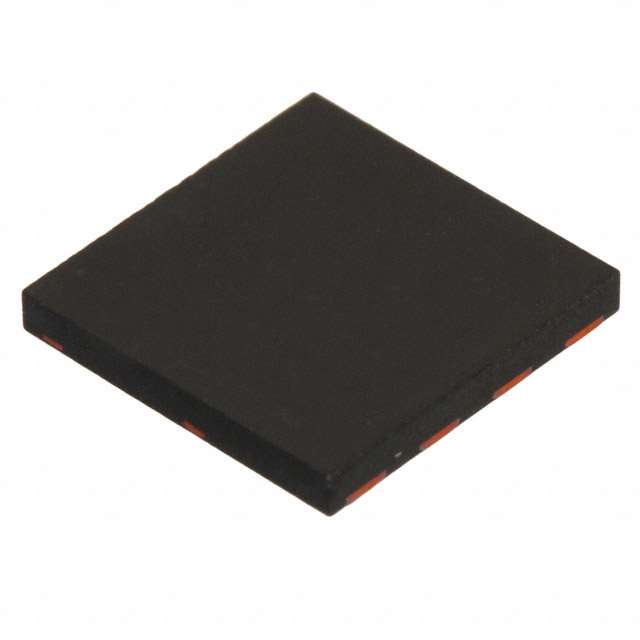

IPL60R385 Series
Manufacturer: INFINEON
Beta
⌘K
COOLMOS™ CP N-CHANNEL SUPERJUNCTION MOSFET 600 V ; THINPAK 8X8 PACKAGE; 385 MOHM;
| Part | Power Dissipation (Max) | Rds On (Max) @ Id, Vgs | Technology | Mounting Type | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Input Capacitance (Ciss) (Max) @ Vds | Package / Case | Gate Charge (Qg) (Max) @ Vgs | Supplier Device Package | Vgs (Max) | Operating Temperature [Min] | Operating Temperature [Max] | FET Type | Vgs(th) (Max) @ Id | Drain to Source Voltage (Vdss) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 83 W | 385 mOhm | MOSFET (Metal Oxide) | Surface Mount | 9 A | 10 V | 790 pF | 4-PowerTSFN | 17 nC | PG-VSON-4 | 20 V | -40 °C | 150 °C | N-Channel | 3.5 V | 600 V |
