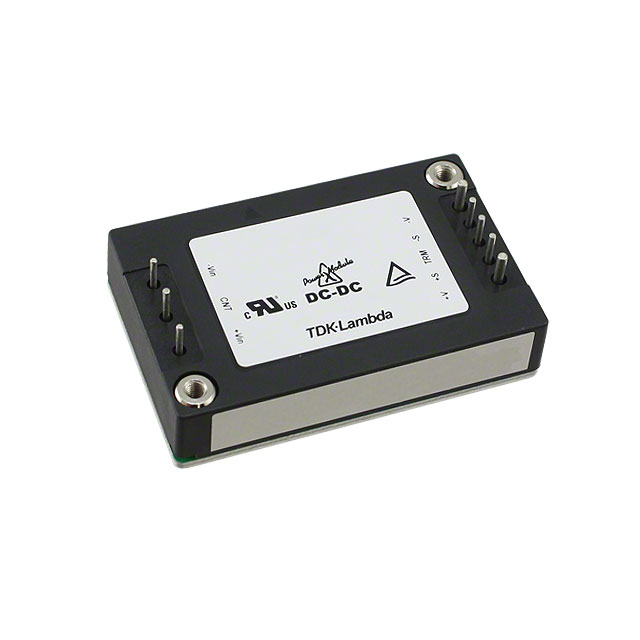

CN100A Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 100W 100VDCIN 12VOUT 8.4A QUARTER BRICK

Part	Power (Watts)	Voltage - Output 1	Applications	Package / Case	Number of Outputs	Voltage - Isolation	Voltage - Input (Min) [Min]	Efficiency	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Features	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Mounting Type	Control Features
TDK Corporation CN100A110-12/CO2	101 W	12 V	ITE (Commercial)	8-DIP Module 1/4 Brick	1	3000 V	60 V	88 %	Isolated Module	-40 C	100 °C	160 V	OCP OVP Remote On/Off UVLO	8.4 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Through Hole
TDK Corporation CN100A24-12	100 W	12 V	ITE (Commercial)	8-DIP Module 1/4 Brick	1	3000 V	14.4 V	88 %	Isolated Module	-40 C	100 °C	36 V	OCP OVP Remote On/Off	8.4 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Through Hole	Active Low Enable
TDK Corporation CN100A110-15/CO2	101 W	15 V	ITE (Commercial)	8-DIP Module 1/4 Brick	1	3000 V	60 V	88 %	Isolated Module	-40 C	100 °C	160 V	OCP OVP Remote On/Off UVLO	6.7 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Through Hole
TDK Corporation CN100A110-5	100 W	5 V	ITE (Commercial)	8-DIP Module 1/4 Brick	1	3000 V	60 V	85 %	Isolated Module	-40 C	100 °C	160 V	Remote On/Off	20 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Through Hole
TDK Corporation CN100A110-24/CO2	101 W	24 V	ITE (Commercial)	8-DIP Module 1/4 Brick	1	3000 V	60 V	88 %	Isolated Module	-40 C	100 °C	160 V	OCP OVP Remote On/Off UVLO	4.2 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Through Hole
TDK Corporation CN100A110-12	100 W	12 V	ITE (Commercial)	8-DIP Module 1/4 Brick	1	3000 V	60 V	88 %	Isolated Module	-40 C	100 °C	160 V	Remote On/Off	8.4 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Through Hole
TDK Corporation CN100A24-24/CO2	100 W	24 V	ITE (Commercial)	8-DIP Module 1/4 Brick	1	3000 V	14.4 V	88 %	Isolated Module	-40 C	100 °C	36 V	OCP OVP Remote On/Off	4.2 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Through Hole	Active Low Enable
TDK Corporation CN100A24-5/CO2	100 W	5 V	ITE (Commercial)	8-DIP Module 1/4 Brick	1	3000 V	14.4 V	86 %	Isolated Module	-40 C	100 °C	36 V	OCP OVP Remote On/Off	20 A	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	Through Hole	Active Low Enable
