177537 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN HEADER VERT 12POS 2.5MM
| Part | Termination | Applications | Insulation Height | Insulation Height | Contact Material | Number of Rows | Fastening Type | Insulation Material | Contact Finish - Post | Number of Positions Loaded | Material Flammability Rating | Voltage Rating | Style | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Contact Length - Mating | Contact Length - Mating | Connector Type | Pitch - Mating | Pitch - Mating | Contact Shape | Number of Positions | Mounting Type | Contact Type | Contact Length - Post [x] | Contact Length - Post [x] | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

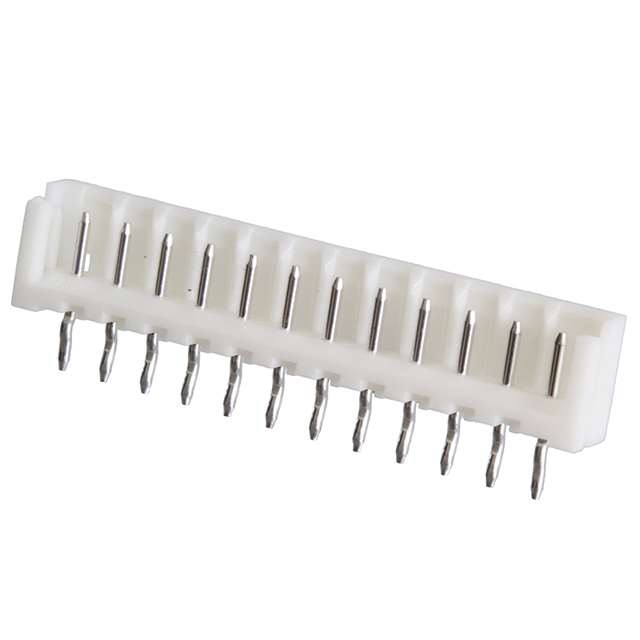

 TE Connectivity Raychem Cable Protection | Press-Fit Solder | General Purpose | 0.255 " | 6.48 mm | Brass | 1 | Friction Lock | Polyamide (PA66) Nylon 6/6 | Tin | All | UL94 V-0 | 250 VAC | Board to Cable/Wire | Varies by Wire Gauge | -25 °C | 105 ░C | Natural | 0.134 " | 3.39 mm | Header | 2.5 mm | 0.098 in | Circular | 12 | Through Hole | Male Pin | 3.18 mm | 0.125 in | Shrouded - 3 Wall |

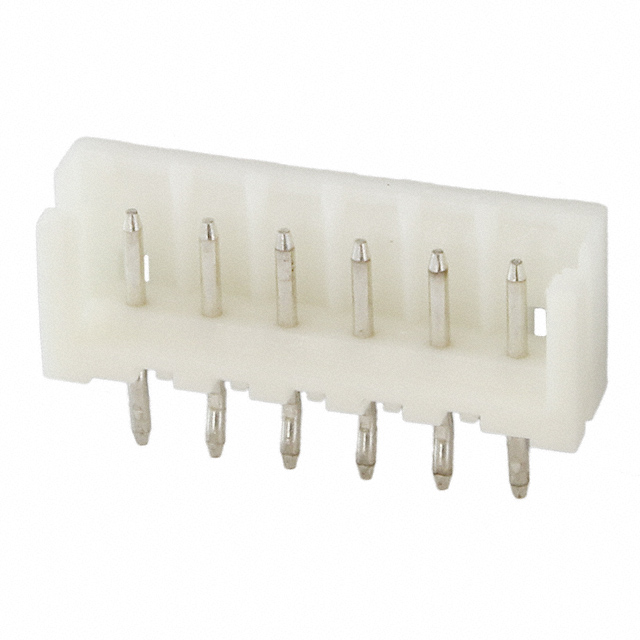

 TE Connectivity Raychem Cable Protection | Press-Fit Solder | General Purpose | 0.255 " | 6.48 mm | Brass | 1 | Friction Lock | Polyamide (PA66) Nylon 6/6 | Tin | All | UL94 V-0 | 250 VAC | Board to Cable/Wire | Varies by Wire Gauge | -25 °C | 105 ░C | Natural | 0.134 " | 3.39 mm | Header | 2.5 mm | 0.098 in | Circular | 6 | Through Hole | Male Pin | 3.18 mm | 0.125 in | Shrouded - 3 Wall |
TE Connectivity Raychem Cable Protection | Press-Fit Solder | General Purpose | 0.255 " | 6.48 mm | Brass | 1 | Friction Lock | Polyamide (PA66) Nylon 6/6 | Tin | All | UL94 V-0 | 250 VAC | Board to Cable/Wire | Varies by Wire Gauge | -25 °C | 105 ░C | Natural | 0.134 " | 3.39 mm | Header | 2.5 mm | 0.098 in | Circular | 4 | Through Hole | Male Pin | 3.18 mm | 0.125 in | Shrouded - 3 Wall |

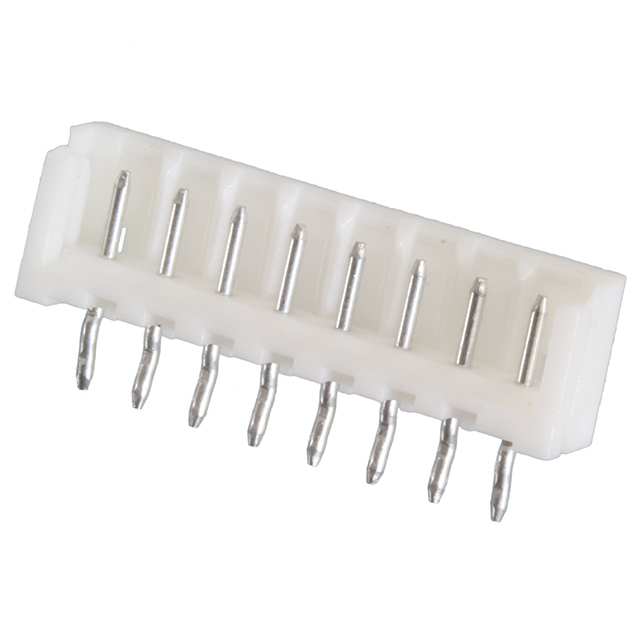

 TE Connectivity Raychem Cable Protection | Press-Fit Solder | General Purpose | 0.255 " | 6.48 mm | Brass | 1 | Friction Lock | Polyamide (PA66) Nylon 6/6 | Tin | All | UL94 V-0 | 250 VAC | Board to Cable/Wire | Varies by Wire Gauge | -25 °C | 105 ░C | Natural | 0.134 " | 3.39 mm | Header | 2.5 mm | 0.098 in | Circular | 8 | Through Hole | Male Pin | 3.18 mm | 0.125 in | Shrouded - 3 Wall |
 TE Connectivity Raychem Cable Protection | Press-Fit Solder | General Purpose | 0.255 " | 6.48 mm | Brass | 1 | Friction Lock | Polyamide (PA66) Nylon 6/6 | Tin | All | UL94 V-0 | 250 VAC | Board to Cable/Wire | Varies by Wire Gauge | -25 °C | 105 ░C | Red | 0.134 " | 3.39 mm | Header | 2.5 mm | 0.098 in | Circular | 2 | Through Hole | Male Pin | 3.18 mm | 0.125 in | Shrouded - 3 Wall |
