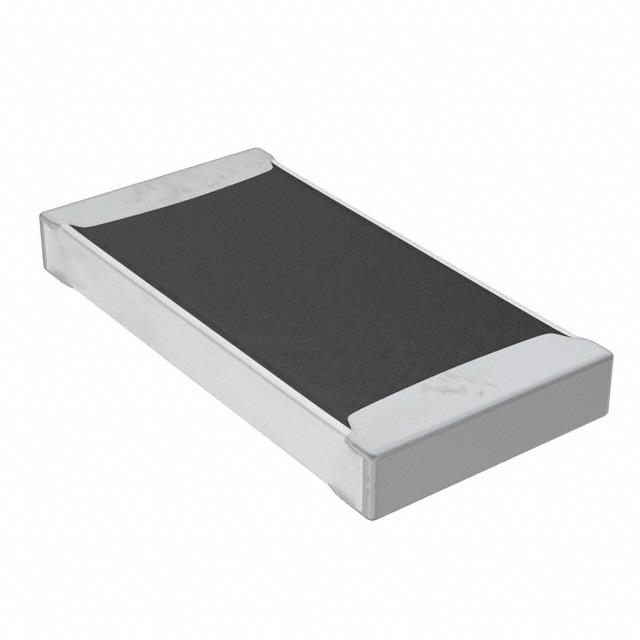

TNPW2010 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

RES 316K OHM 0.1% 2/5W 2010

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Terminations	Resistance	Power (Watts)	Power (Watts)	Composition	Temperature Coefficient	Supplier Device Package	Tolerance	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case
Vishay General Semiconductor - Diodes Division TNPW2010316KBEEF	-55 °C	347 °F	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	316 kOhms	0.4 W	0.4 W	Thin Film	25 ppm/°C	2010	0.1 %	AEC-Q200	0.03 in	0.75 mm	0.197 in	0.098 in	5 mm	2.5 mm	2010 (5025 Metric)
Vishay General Semiconductor - Diodes Division TNPW2010910KBEEF	-55 °C	347 °F	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	910 kOhms	0.4 W	0.4 W	Thin Film	25 ppm/°C	2010	0.1 %	AEC-Q200	0.03 in	0.75 mm	0.197 in	0.098 in	5 mm	2.5 mm	2010 (5025 Metric)
Vishay General Semiconductor - Diodes Division TNPW20103K83BEEF	-55 °C	347 °F	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	3.83 kOhms	0.4 W	0.4 W	Thin Film	25 ppm/°C	2010	0.1 %	AEC-Q200	0.03 in	0.75 mm	0.197 in	0.098 in	5 mm	2.5 mm	2010 (5025 Metric)
Vishay General Semiconductor - Diodes Division TNPW201054R9BETF	-55 °C	125 °C	Military	2	54.9 Ohms	0.4 W	0.4 W	Thin Film	25 ppm/°C	2010	0.1 %		0.03 in	0.75 mm	0.197 in	0.098 in	5 mm	2.5 mm	2010 (5025 Metric)
Vishay General Semiconductor - Diodes Division TNPW2010330RBEEY	-55 °C	347 °F	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	330 Ohms	0.4 W	0.4 W	Thin Film	25 ppm/°C	2010	0.1 %	AEC-Q200	0.03 in	0.75 mm	0.197 in	0.098 in	5 mm	2.5 mm	2010 (5025 Metric)
Vishay General Semiconductor - Diodes Division TNPW2010105RBEEF	-55 °C	347 °F	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	105 Ohms	0.4 W	0.4 W	Thin Film	25 ppm/°C	2010	0.1 %	AEC-Q200	0.03 in	0.75 mm	0.197 in	0.098 in	5 mm	2.5 mm	2010 (5025 Metric)
Vishay General Semiconductor - Diodes Division TNPW2010120KBEEF	-55 °C	347 °F	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	120 kOhms	0.4 W	0.4 W	Thin Film	25 ppm/°C	2010	0.1 %	AEC-Q200	0.03 in	0.75 mm	0.197 in	0.098 in	5 mm	2.5 mm	2010 (5025 Metric)
Vishay General Semiconductor - Diodes Division TNPW2010422RBETF	-55 °C	125 °C	Military	2	422 Ohms	0.4 W	0.4 W	Thin Film	25 ppm/°C	2010	0.1 %		0.03 in	0.75 mm	0.197 in	0.098 in	5 mm	2.5 mm	2010 (5025 Metric)
Vishay General Semiconductor - Diodes Division TNPW2010360RBEEF	-55 °C	347 °F	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	360 Ohms	0.4 W	0.4 W	Thin Film	25 ppm/°C	2010	0.1 %	AEC-Q200	0.03 in	0.75 mm	0.197 in	0.098 in	5 mm	2.5 mm	2010 (5025 Metric)
